Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

230 Upgrade and Maintenance Manual RX300 S8
Expansion cards and backup units
9.6.6.3 Removing the FBU holder from the air duct

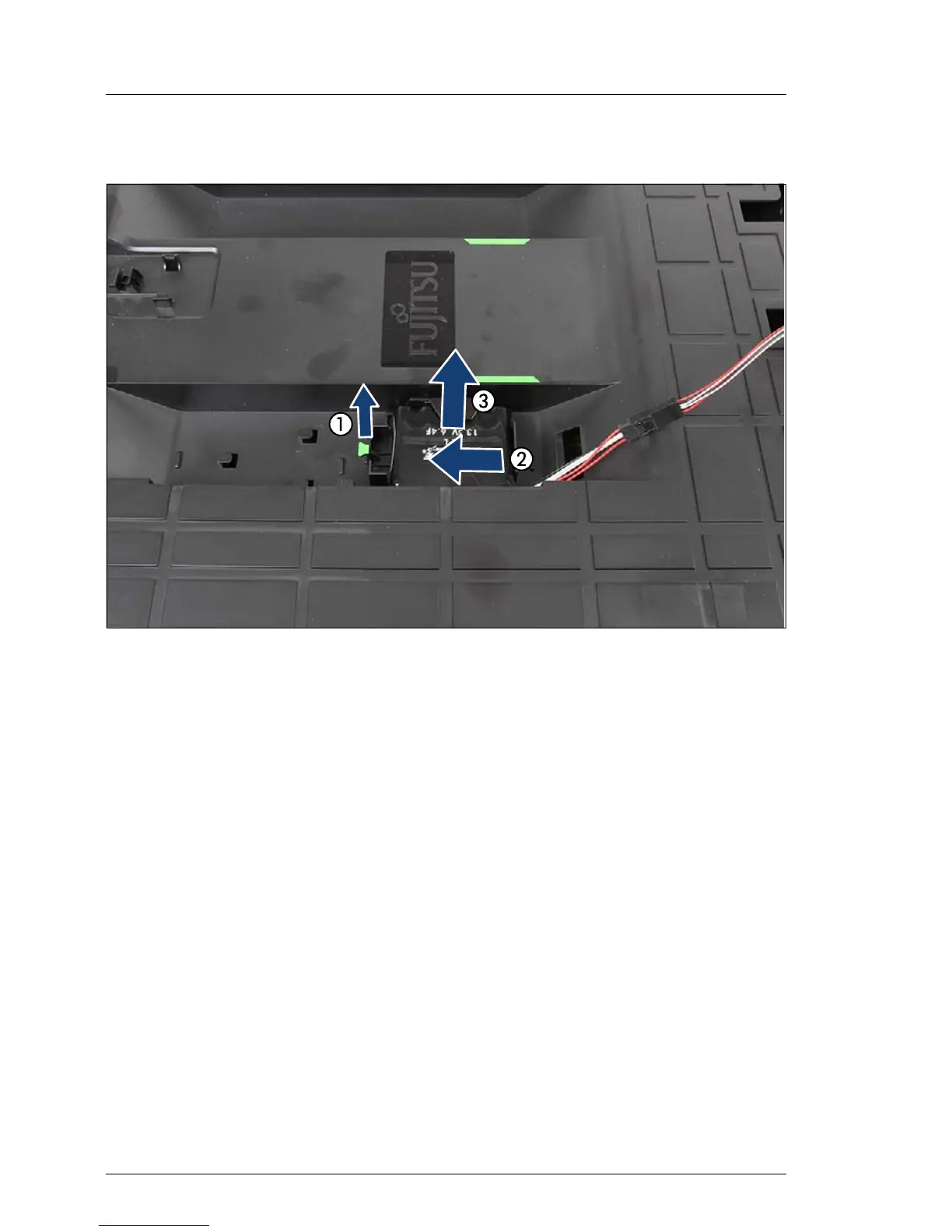

Figure 119: Removing the FBU holder from the air duct (A)
Ê Lift up the green locking handle on the FBU holder (1) while sliding the FBU
holder to the left as far as it will go (2).
I After that, the hooks on the air duct will rest in the wide ends of the
keyhole slots on the holder.
Ê Lift the FBU holder from the air duct (3).
9.6.6.4 Concluding steps
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê If applicable, "Updating RAID controller firmware" on page 84.
Ê "Enabling SVOM boot watchdog functionality" on page 89

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
