Fujitsu PRIMERGY RX300 S8

150 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
7.4.2.3 Removing the 4x 2.5-inch SAS HDD backplane

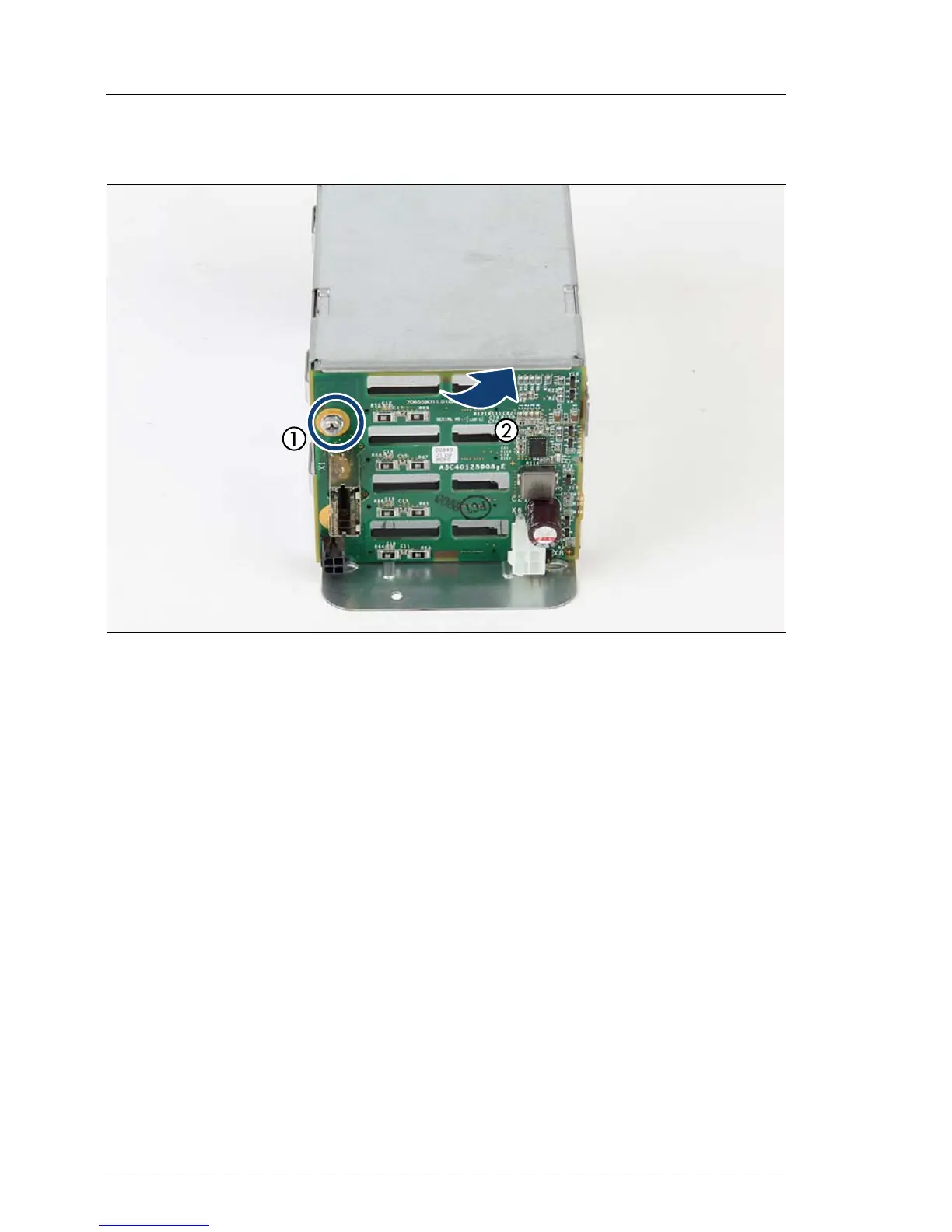

Figure 56: Removing the 4x 2.5-inch HDD SAS backplane
Ê Remove the screw (1).
Ê Remove the 4x 2.5-inch HDD SAS backplane (2).
