RX300 S8 Upgrade and Maintenance Manual 191
Expansion cards and backup units
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws (2).
9.4.1.3 Installing the SAS RAID controller
Ê Remove the SAS RAID controller from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Preparing the SAS RAID controller" on page 190.

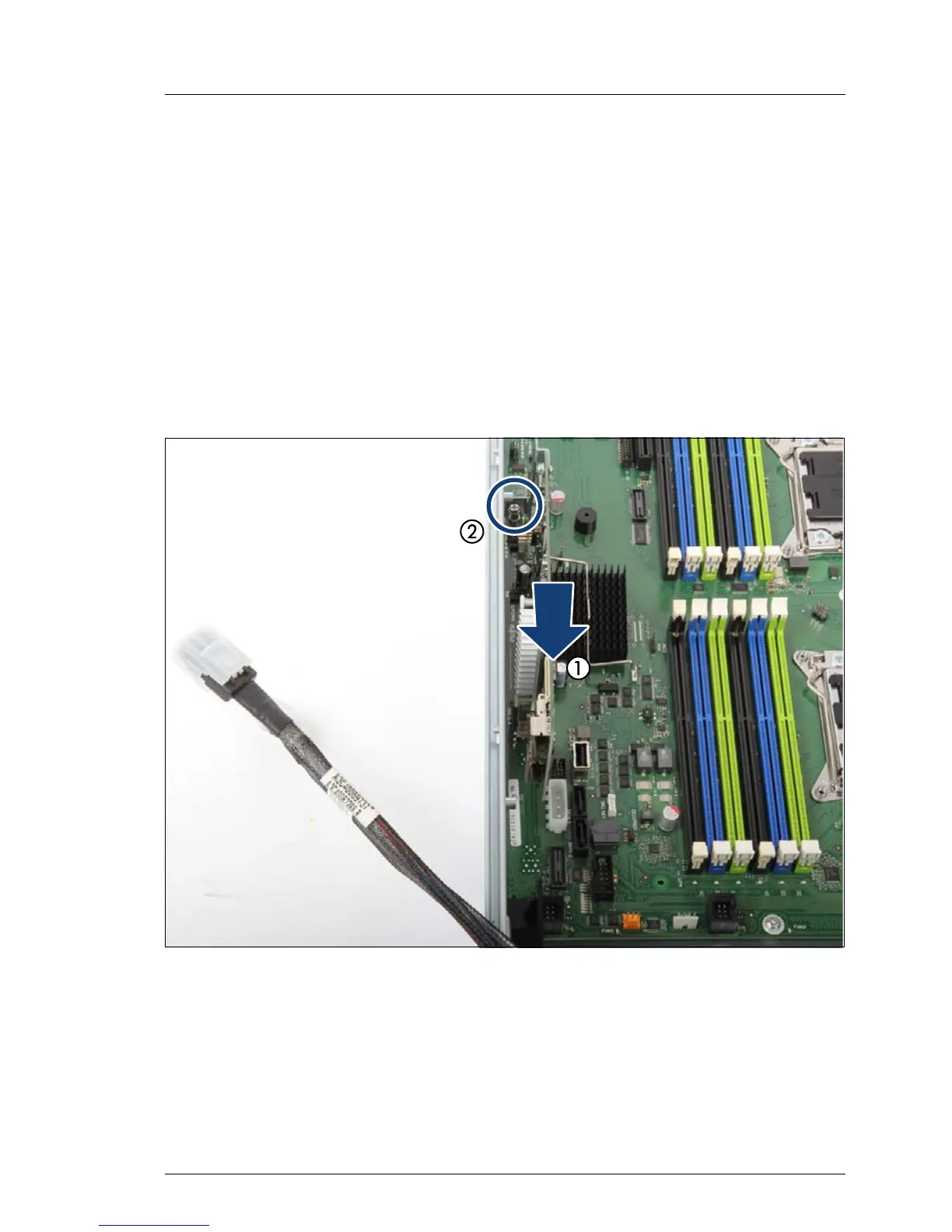

Figure 91: Installing the SAS RAID controller
Ê Carefully insert the RAID controller into PCI slot 7 and press down firmly until
it is fully seated in the slot (1).
I For slot preferences, please refer to section "Basic information" on
page 167.
Ê Secure the RAID controller with the screw on the RAID card holder (2).

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
