184 Upgrade and Maintenance Manual
RX300 S8
Expansion cards and backup units

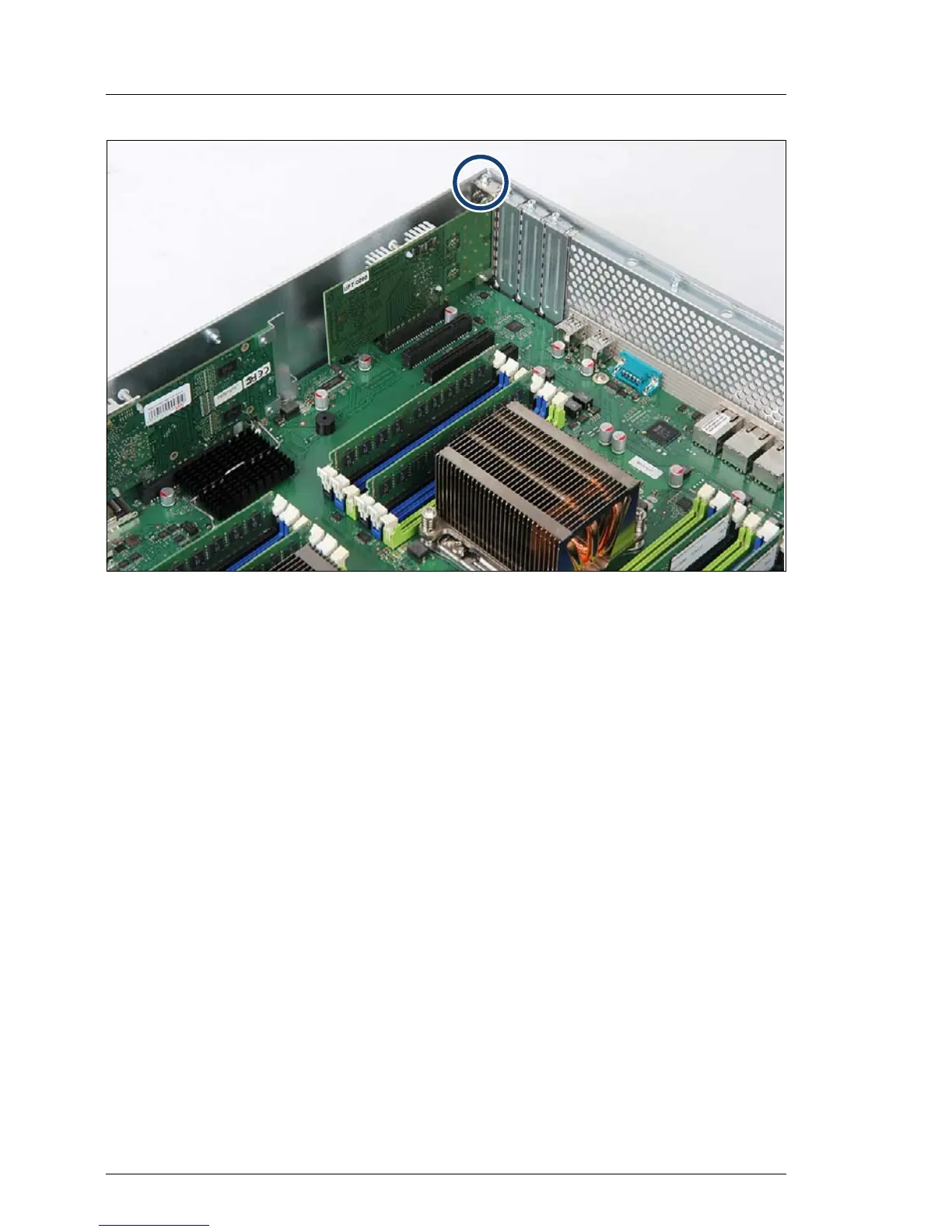

Figure 87: Installing the expansion card (B)
Ê Fasten the expansion card with the screw.
Ê If applicable, install SFP+ transceiver modules into the new expansion card,
as described in section "Installing SFP+ transceiver modules" on page 234.
Ê If applicable, connect internal cables to the expansion card.
I For a complete cabling overview, please refer to section "List of used
cables" on page 465.
Ê If applicable, connect a BBU to the expansion card as described in section
"Installing a BBU" on page 209.
9.3.1.4 Concluding steps
Ê "Reassembling" on page 63
Ê Reconnect all external cables to the expansion card.
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê "Updating RAID controller firmware" on page 84
Ê If applicable, "Enabling Option ROM scan" on page 85.
