RX300 S8
Upgrade and Maintenance Manual 123
Hard disk drives / solid state drives
7.2.1.2 HDD naming scheme
I The HDD numbering as listed in the ServerView RAID Manager differs
from the HDD mounting order:
7.2.2 4x3.5-inch HDD configuration with tape/RDX drive
7.2.2.1 Mounting order with tape/RDX drive
I Maximum configuration: 4x 3.5-inch HDDs

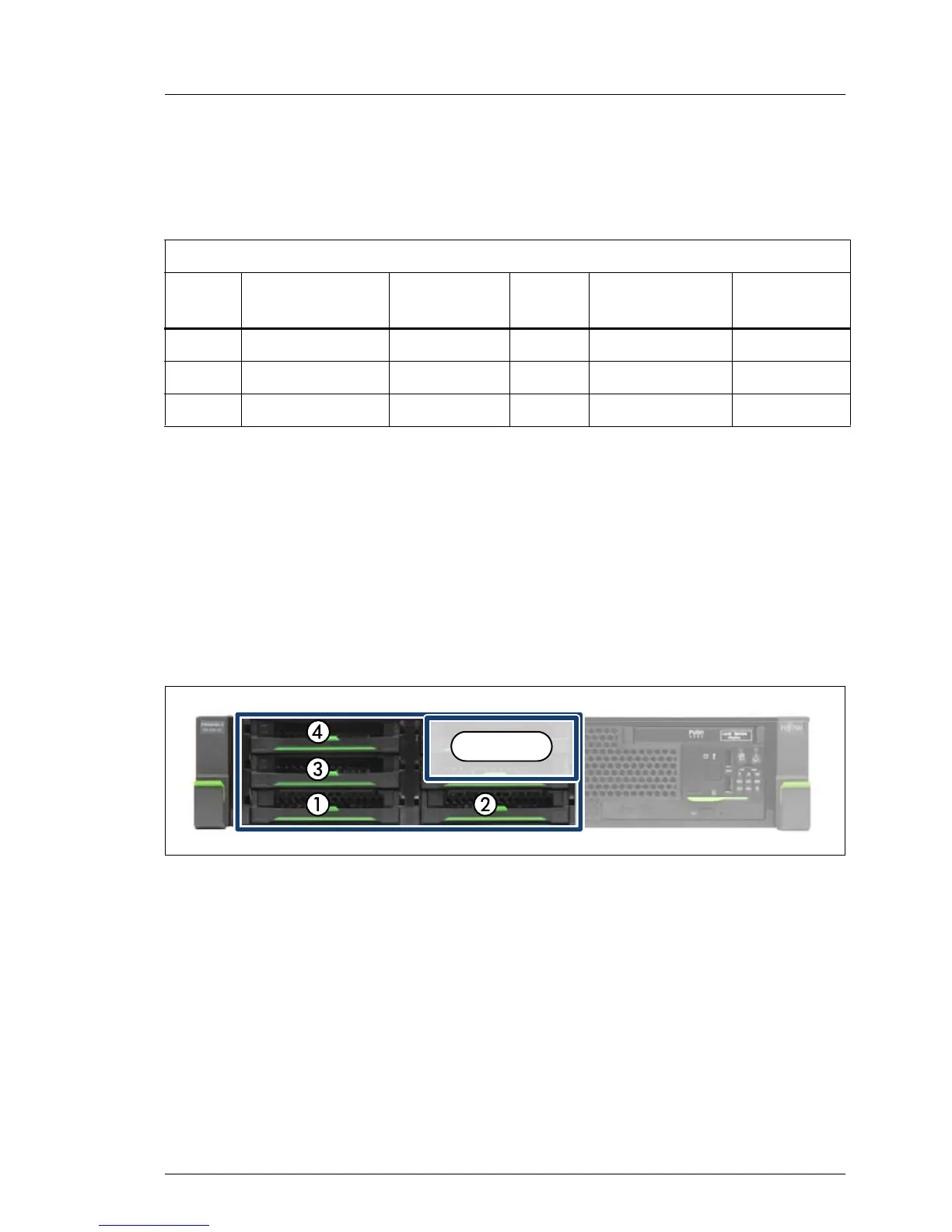

Figure 32: 3.5-inch HDD mounting order with tape
3.5-inch HDDs
HDD
RAID Manager
#
Channel HDD
RAID
Manager #
Channel
1 [0] 12 [4] 2
3 [1] 14 [5] 2
5 [2] 16 [6] 2
Table 4: HDD naming scheme
tape
