300 Upgrade and Maintenance Manual
RX300 S8
Accessible drives
12.2.2 Removing the LSD dummy cover

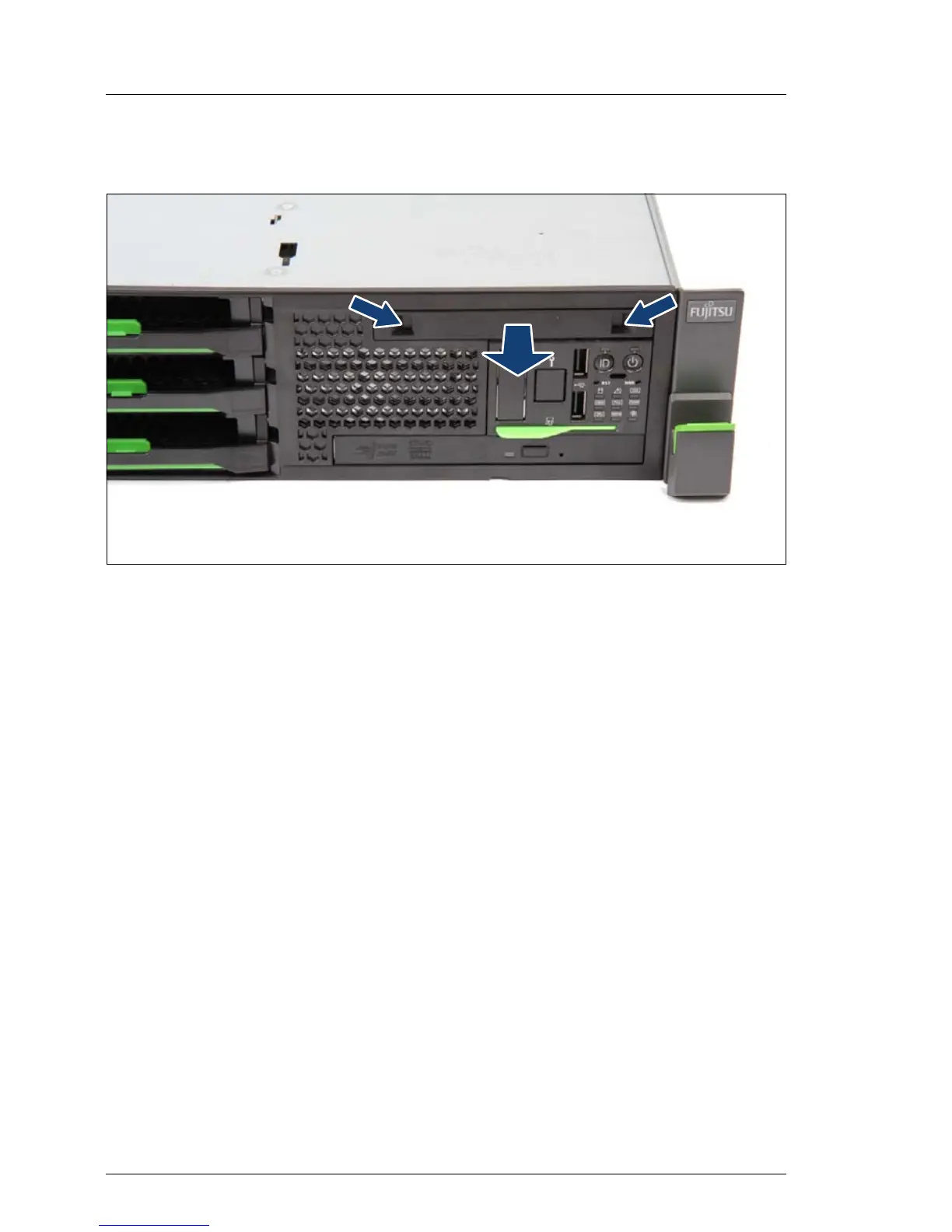

Figure 170: Removing the LSD dummy cover
Ê Take the LSD dummy cover by the two recessed grips and pull out the LSD
dummy cover.
V CAUTION!
Save the LSD dummy cover for future use.
Always replace dummy covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
