Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

152 Upgrade and Maintenance Manual RX300 S8
Hard disk drives / solid state drives
7.4.2.5 Installing the HDD cage

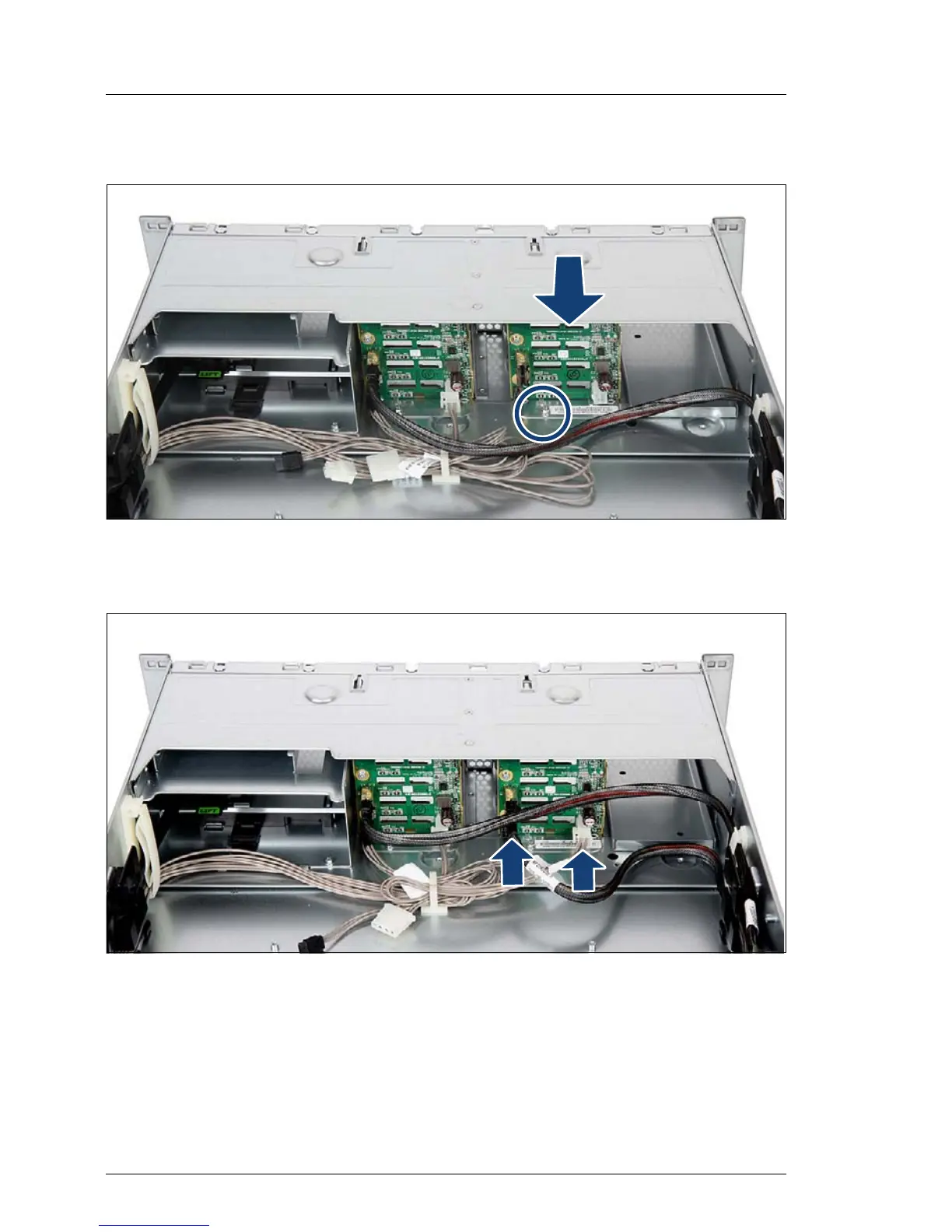

Figure 58: Installing the 2.5-inch HDD cage
Ê Secure the 2.5-inch HDD SAS backplane on the drive cage with the screws.
Figure 59: Reconnecting cables to the 4x 2.5-inch HDD SAS backplane
Ê Reconnect all cables to the 2.5-inch HDD SAS backplane:
– Power cable to SAS backplane connector X6
– If applicable power cable to SAS backplane connector X9
– SAS cable to backplane connectors X1

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
