368 Upgrade and Maintenance Manual
RX300 S8
Front panel and external connectors

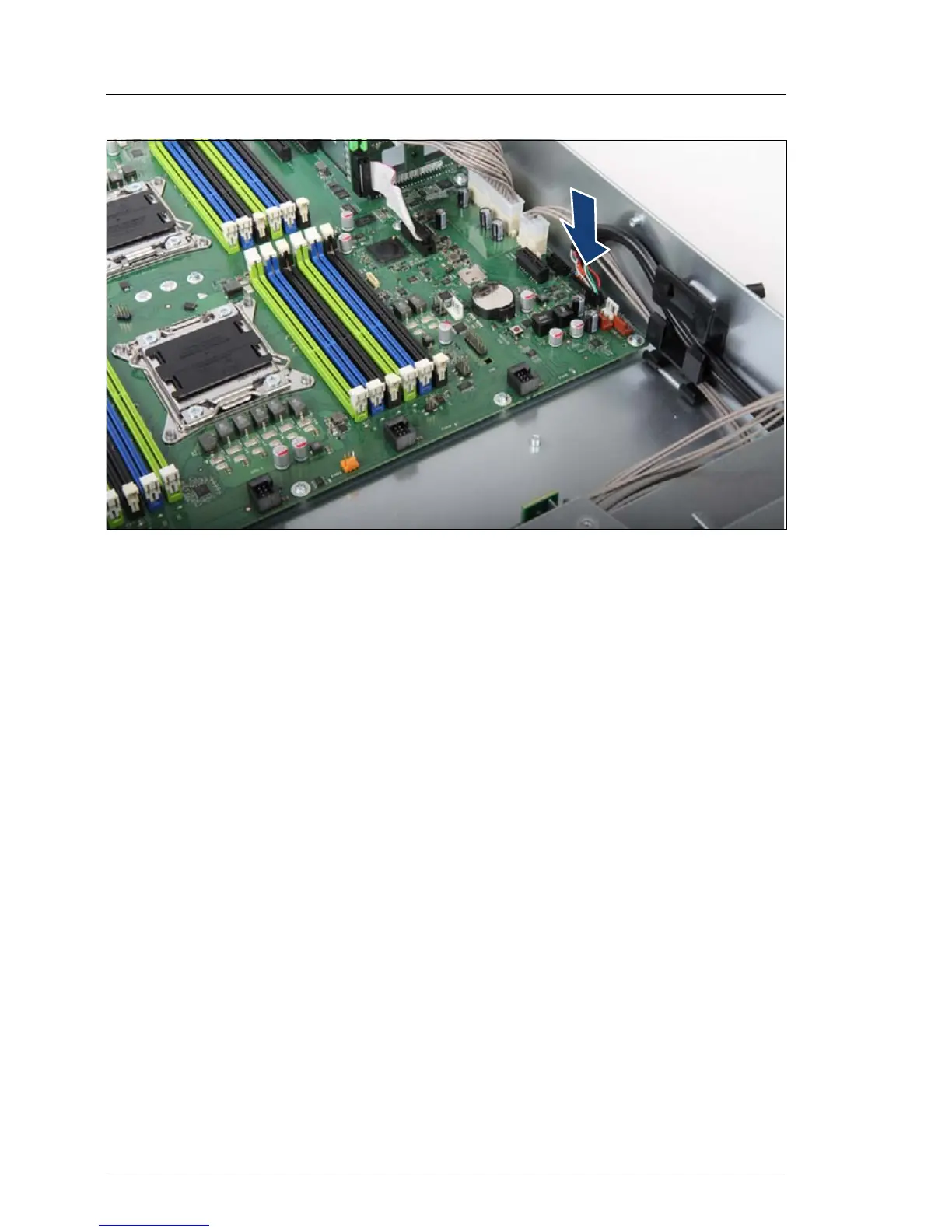

Figure 234: Connecting front panel cables
Ê Connect the front panel cable to the system board.
Ê If applicable, connect the front VGA cable to the front VGA connector of the
system board as described in section "Installing the front VGA connector" on
page 369.
Ê If applicable, connect the front LAN cable to the system board as describe
in section "Installing the front LAN connector" on page 376.
13.1.1.4 Concluding steps
Ê "Installing the fan box" on page 164
Ê "Reassembling" on page 63
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê "Verifying system information backup / restore" on page 83
Ê Store your server’s system information on the Chassis ID EPROM
integrated into the front panel board. For further information on how to obtain
and use the ChassisId_Prom Tool, refer to section "Using the Chassis ID
Prom Tool" on page 98.
Ê "Enabling SVOM boot watchdog functionality" on page 89
