RX300 S8
Upgrade and Maintenance Manual 269
Processors
V CAUTION!
– Ensure that the processor is level in the socket.
– Be careful not to touch or bend the pins on the processor socket.
– Never touch the underside of the processor. Even minor soiling
such as grease from the skin can impair the processor’s operation
or destroy the processor.
– Ensure not to scrape or dent the processor edges.
11.2.2.3 Removing the protective socket cover

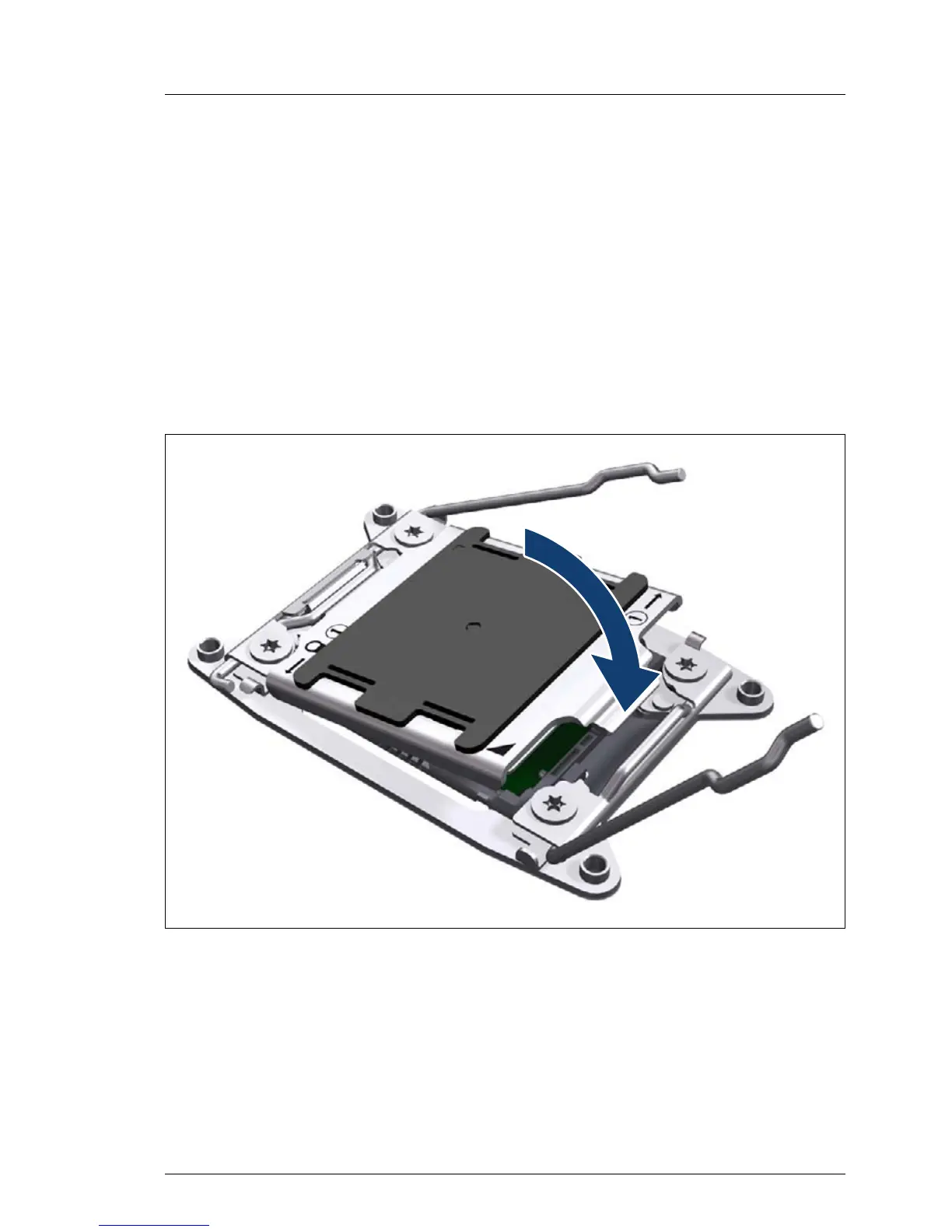

Figure 143: Closing the load plate
Ê Carefully lower the load plate over the processor.
