RX300 S8 Upgrade and Maintenance Manual 463
Conversion configurations

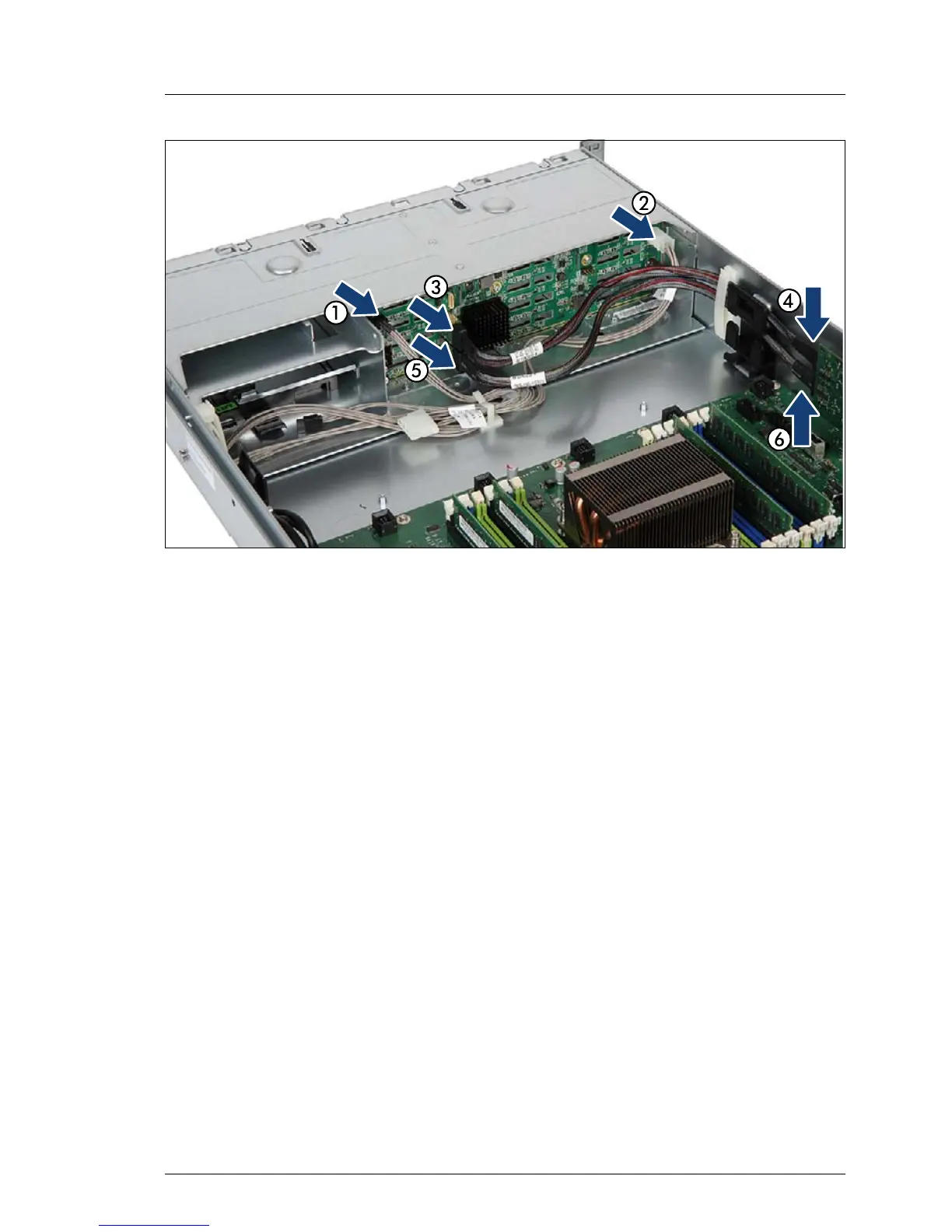

Figure 322: Connecting SAS cables
Ê Connect cable C5 to the connector X17 of the 12x 2.5-inch SAS
backplane (1).
Ê Connect cable C4 to the connector X15 of the 12x 2.5-inch SAS
backplane (2).
Ê Connect the cable C9 to X1 of the 12x 2.5-inch SAS backplane (3) and the
connector MLC1 of the SAS controller (4).
Ê Connect the cable C9 to X2 of the 12x 2.5-inch SAS backplane (5) and the
connector MLC2 of the SAS controller (6).
Ê Route the cables as shown.
15.3.6 Configuration 4 to configuration 8
Ê Convert Configuration 4 to configuration 7 see section "Configuration 4 to
configuration 7" on page 461.
Ê Replace multicage with the panelhousing and a HDD cage as described in
section "Replacing the front cages" on page 458.
Ê Connect cable C7 from connector X1 of the 4x 2.5-inch SAS backplane to
connector X3 of the 12x 2.5-inch SAS backplane

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
