Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

462 Upgrade and Maintenance Manual RX300 S8
Conversion configurations
Ê Insert the HDD cages. The cage with the cover plate must be installed into
bay 2.

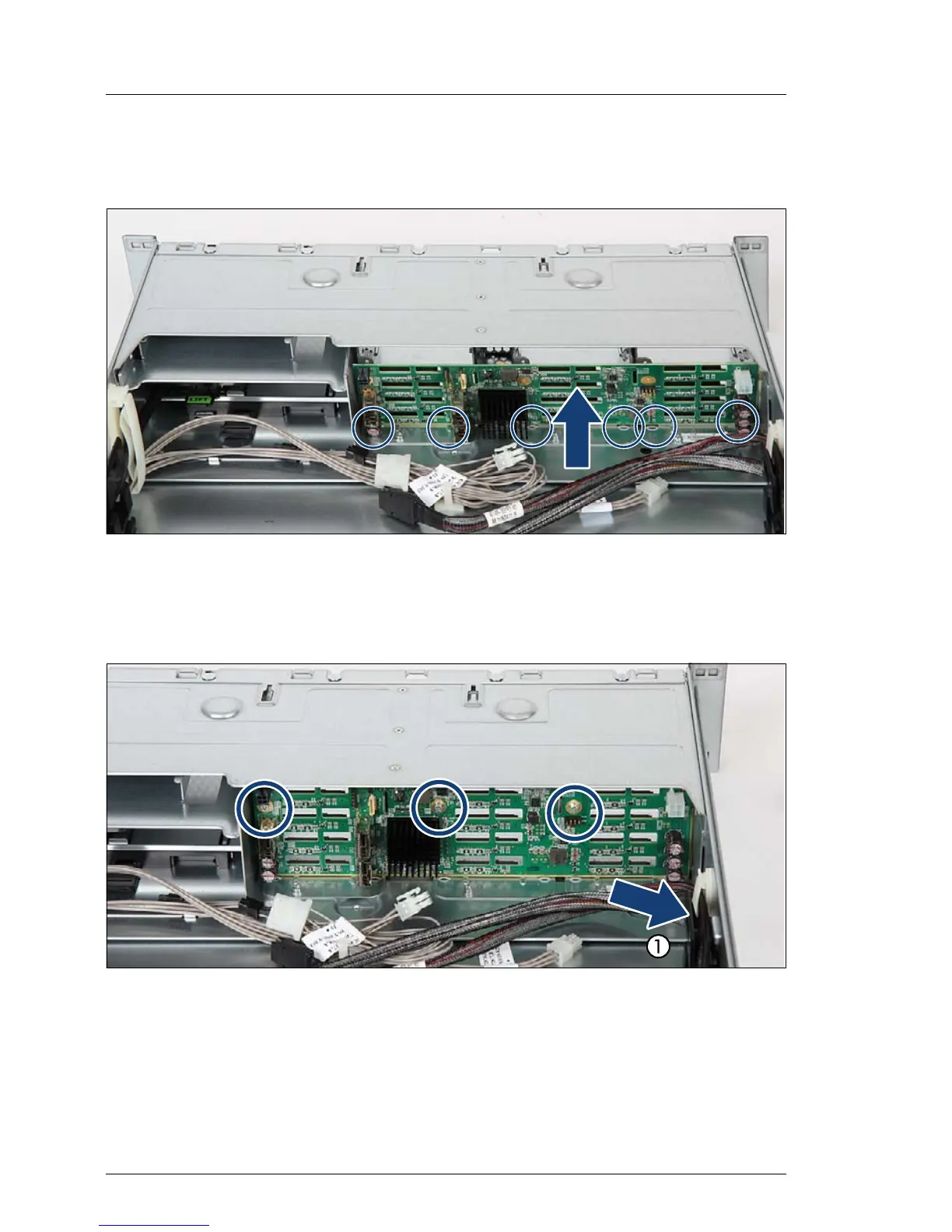

Figure 320: Installing the 12x 2.5-inch HDD backplane
Ê Insert the 12x 2.5-inch HDD backplane in the guiding recesses.
Ê Fold the 12x 2.5-inch HDD backplane.
Figure 321: Installing the 12x 2.5-inch HDD backplane
Ê Fasten the 12x 2.5-inch HDD backplane with three screws.
Ê Remove cable C10 from the connector MLC2 of the SAS controller.

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
