RX300 S8
Upgrade and Maintenance Manual 325
Accessible drives

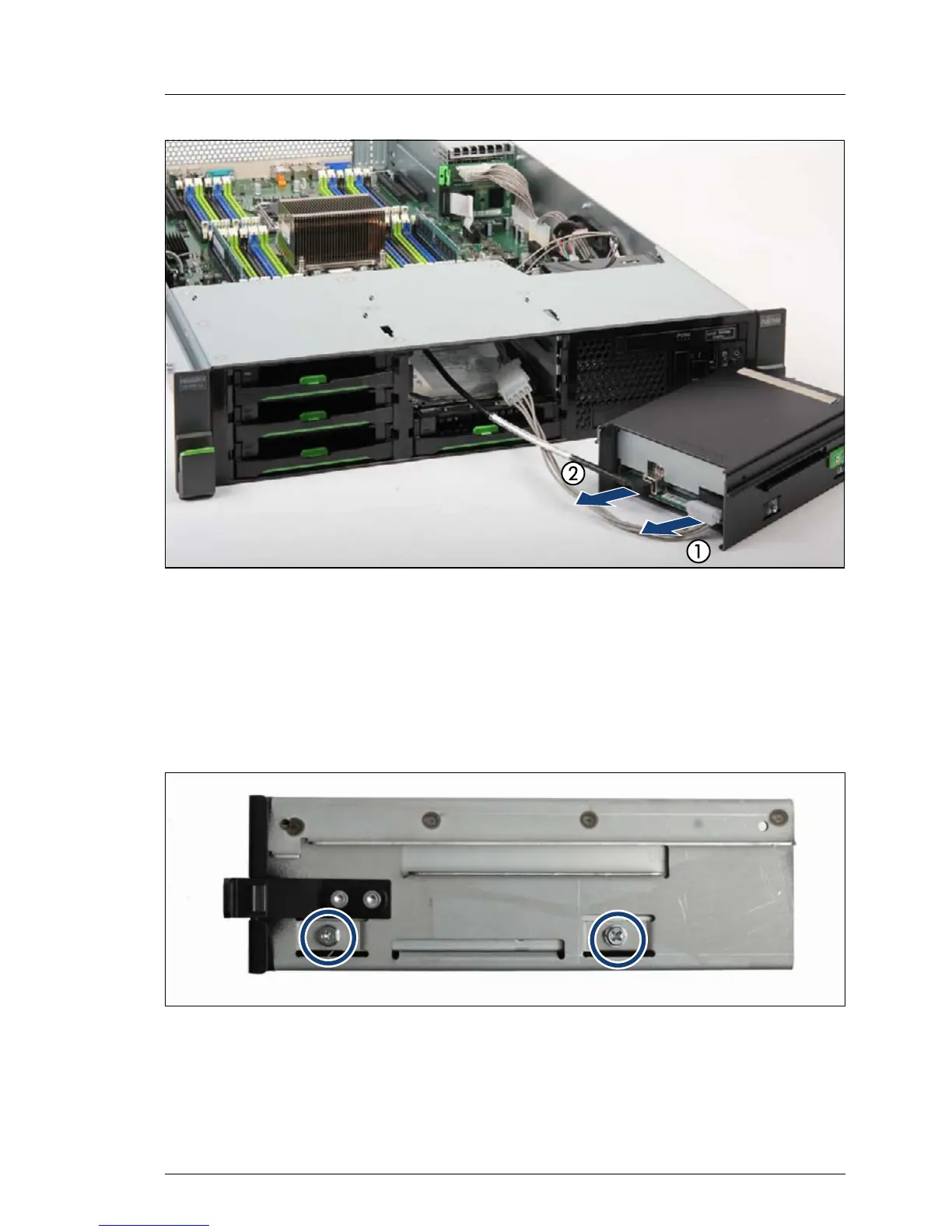

Figure 195: Removing the cables from the tape/RDX drive
Ê Disconnect the power adapter cable from the tape/RDX drive (1).
Ê Disconnect the USB cable from the tape/RDX drive (2).
12.9.3 Removing a tape/RDX drive out of the cage
Figure 196: Removing the 4 screws
Ê Remove the 4 screws from the drive cage
