RX300 S8
Upgrade and Maintenance Manual 181
Expansion cards and backup units

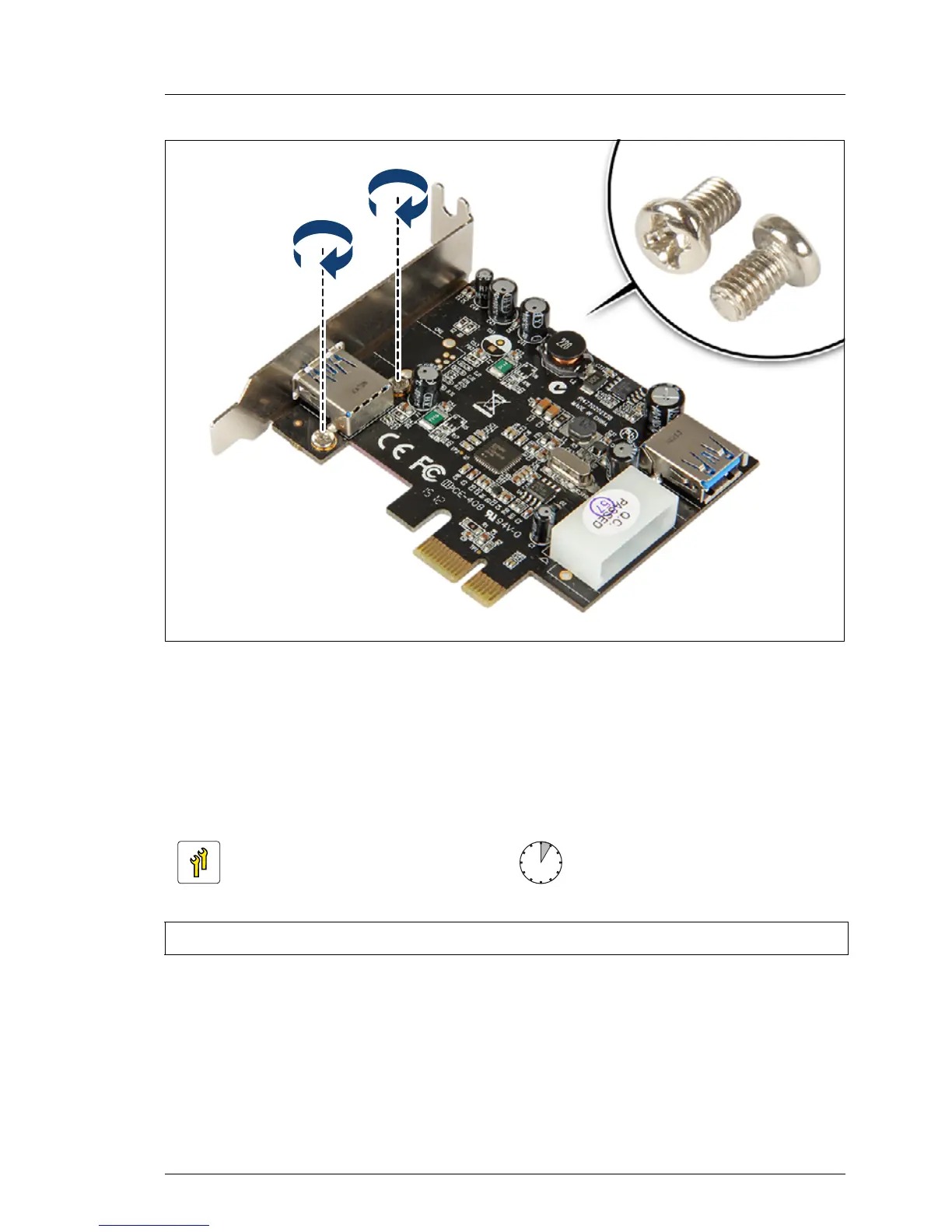

Figure 84: Mounting the PCI slot bracket (B)
Ê Secure the slot bracket to the controller with the two M3 x 5 mm screws
contained in the expansion card kit.
9.2.2 Removing a slot bracket
Removing the slot bracket
Ê Remove the two screws.
Ê Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
