RX300 S8
Upgrade and Maintenance Manual 187
Expansion cards and backup units
9.3.2.3 Installing a PCI slot bracket
V CAUTION!
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.

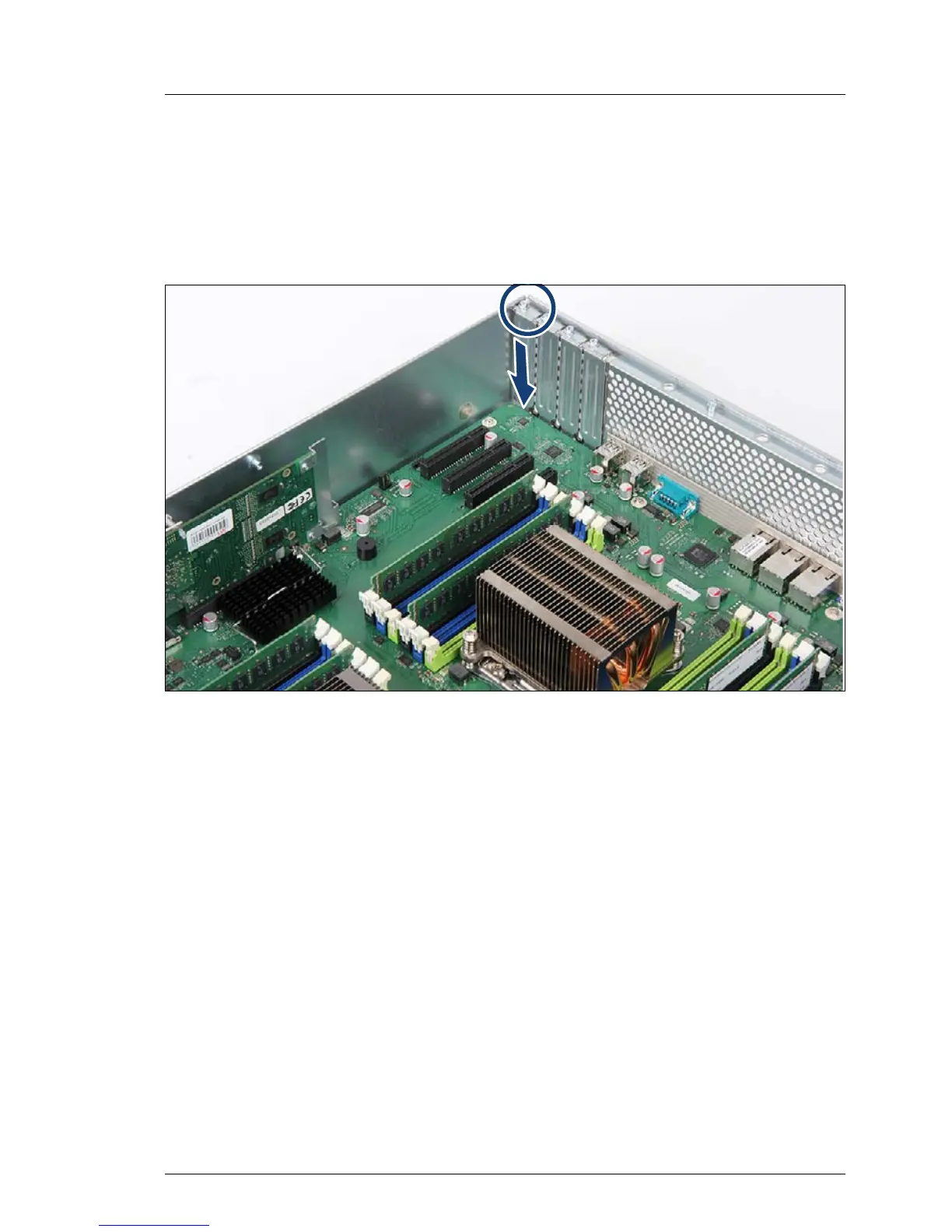

Figure 89: Installing a slot bracket (A)
Ê Insert a slot bracket into the unused PCI slot opening.
Ê Fasten slot bracket with the screw.
9.3.2.4 Concluding steps
Ê "Reassembling" on page 63
Ê "Mounting the housing cover" on page 65
Ê "Connecting the server to the power source" on page 69
Ê "Switching on the server" on page 71
Ê "Enabling BitLocker functionality" on page 95
