RX300 S8
Upgrade and Maintenance Manual 395
Front panel and external connectors
Panelhousing

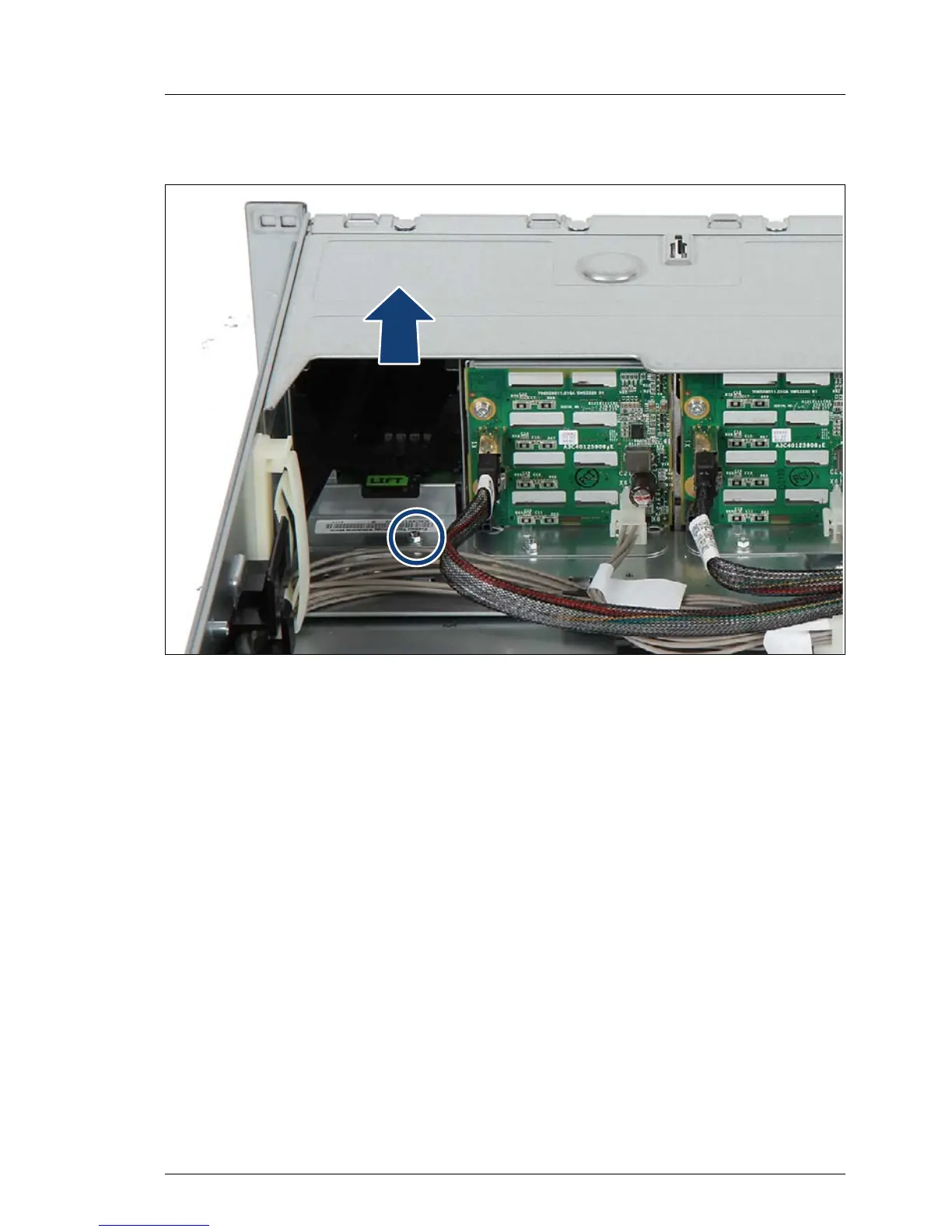

Figure 260: Removing the front panel cage
Ê Remove the screw.
Ê Push the front panel cage out of the chassis frontward.
Ê "Removing the front panel module" on page 363
13.4.1.3 Re-installing the front panel cage
Multicage
Ê Install the removed modules.
– "Installing the front panel module" on page 365
– "Installing an ODD" on page 310
– "Installing a LSD module" on page 301
