Front panel and external connectors
– Front LAN cable:
– Front VGA cable:
– ODD cable:
– LSD cable:
Multicage

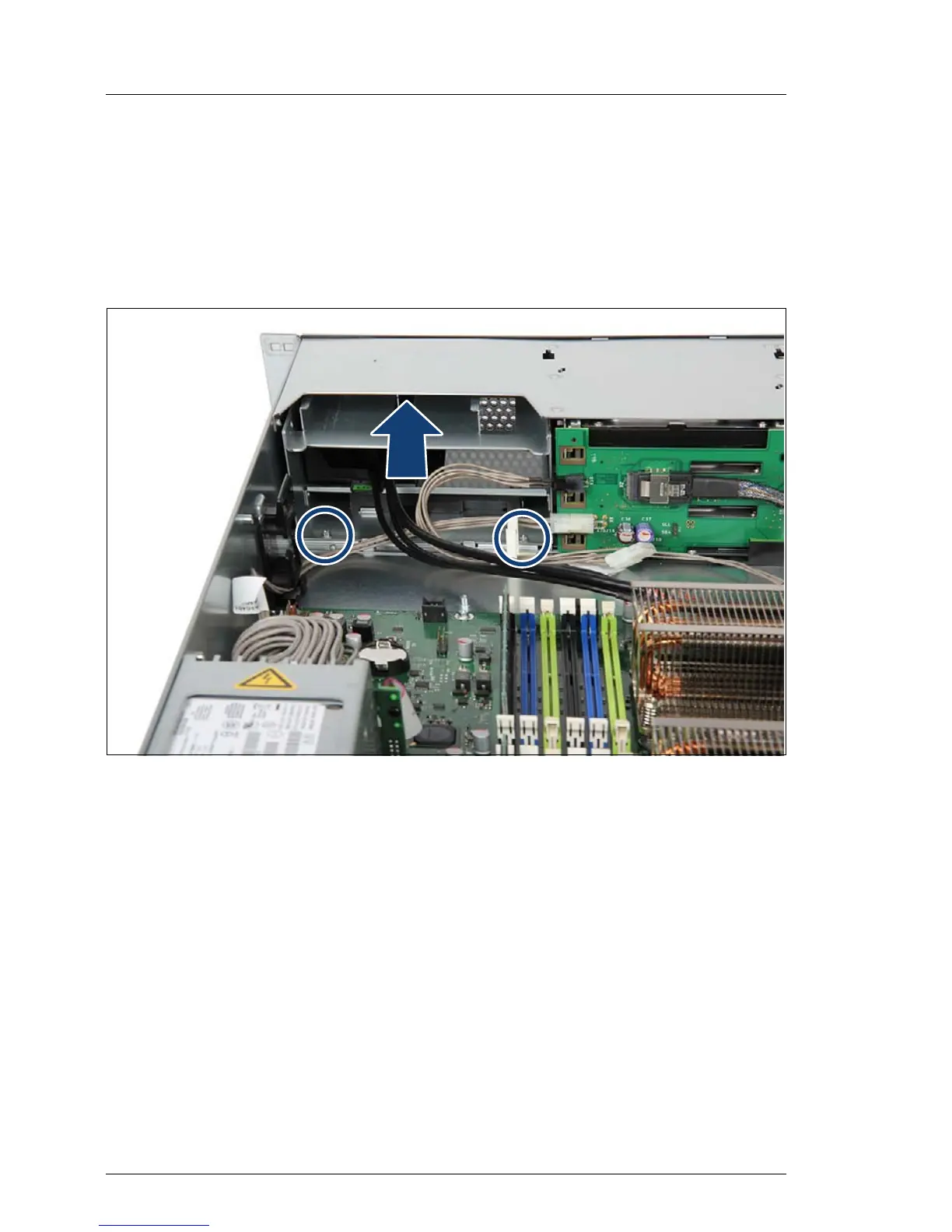

Figure 259: Removing the front panel cage
Ê Remove the two screws.
Ê Push the front panel cage out of the chassis frontward.
Ê Remove the installed modules.
– "Removing the front panel module" on page 363
– "Removing the ODD" on page 312
– "Removing the LSD module" on page 303
