RX300 S8
Upgrade and Maintenance Manual 213
Expansion cards and backup units
Ê Insert the BBU holder into the air duct so that the three hooks on the air duct
rest in the wide ends of the keyhole slots on the BBU holder (1).
Ê Slide the BBU holder in as far as it will go (2).
The hooks on the air duct will lock in the narrow ends of the keyhole slots on
the BBU holder.
Ê Ensure that the locking handle on the BBU holder properly snaps in place
(3).
9.6.2.5 Installing the air duct with a BBU

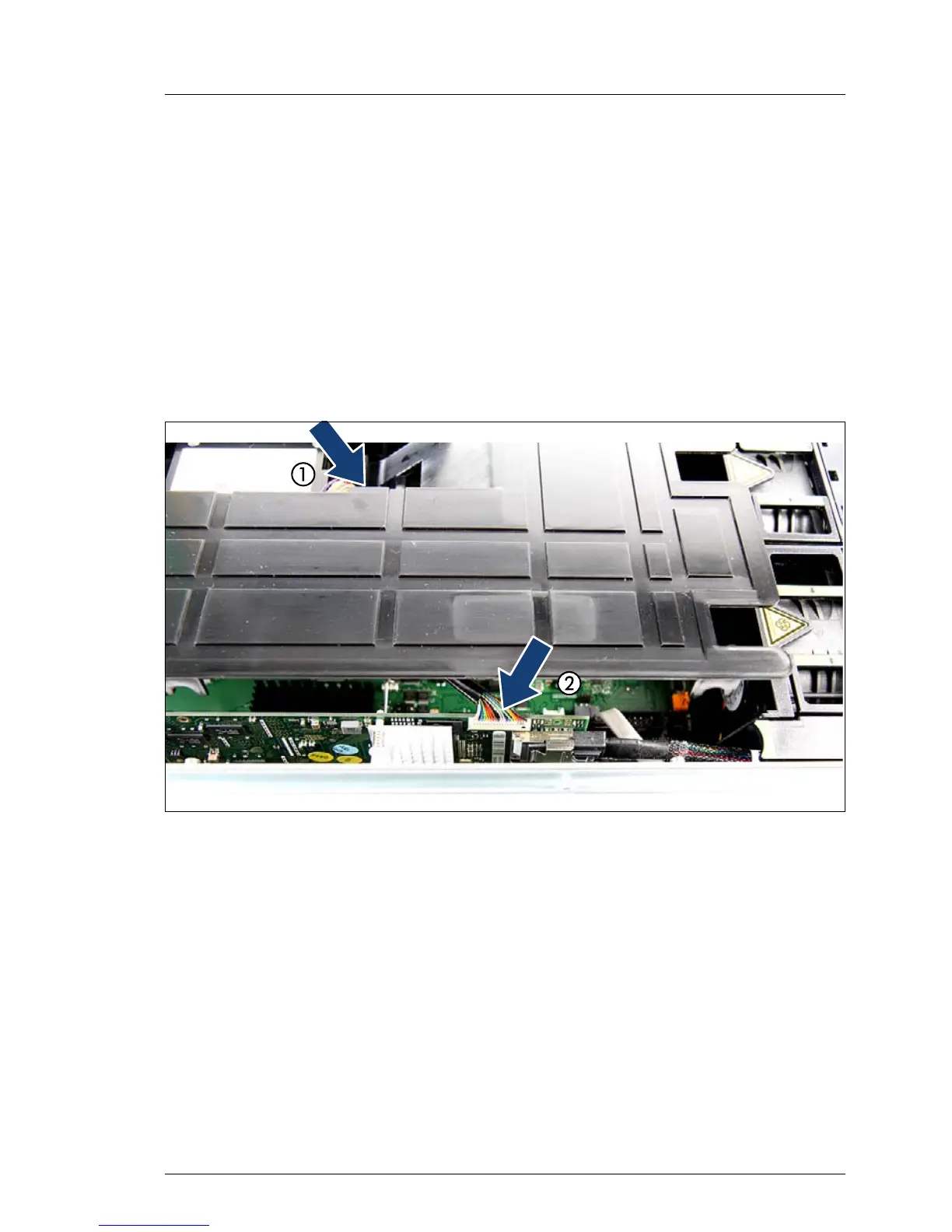

Figure 105: Connecting the BBU to the controller
Ê Insert the air duct.
Ê Tilt up the air duct a little.
Ê Thread the BBU cable though the gap in the air duct (1)
Ê Connect the BBU cable to the RAID controller (2).
V CAUTION!
Make sure that the connector side with the three dots points towards
you. Otherwise, short-circuits may result!
