RX300 S8
Upgrade and Maintenance Manual 329
Accessible drives
Ê "Locating the defective server" on page 51
Ê "Shutting down the server" on page 54
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 57
Ê "Removing the front cover" on page 443
Ê "Removing the fan box" on page 162
12.11.2 Installing a tape/RDX drive in the cage
Ê Removing the 2.5-inch-HDD cage out of bay 2 for further information see
"Removing HDD cages and front panel cage" on page 444

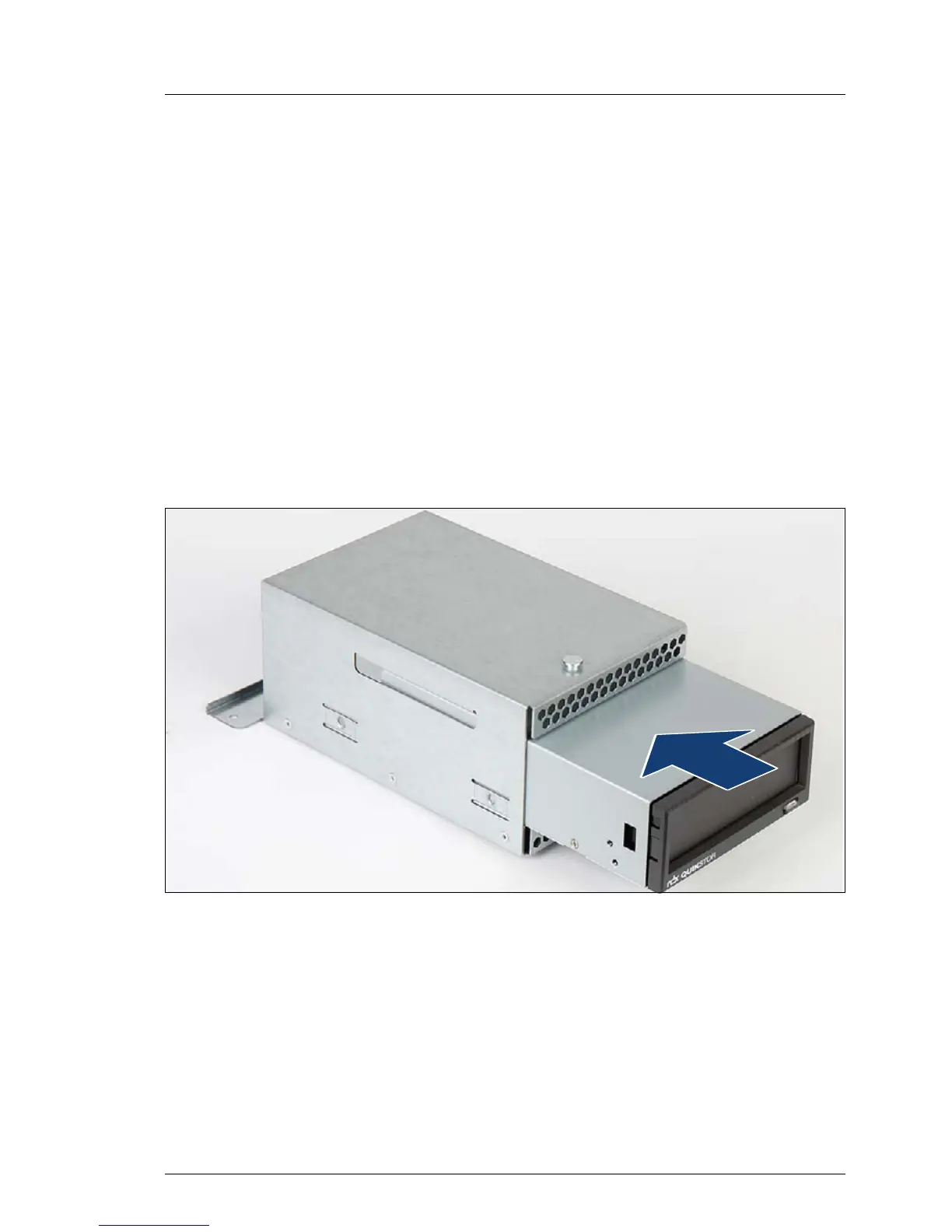

Figure 198: Inserting the tape/RDX drive in the drive cage
Ê Insert the tape/RDX drive into the bay and push in.
