RX300 S8
Upgrade and Maintenance Manual 289
Processors
11.5.2.2 Installing the heat sink

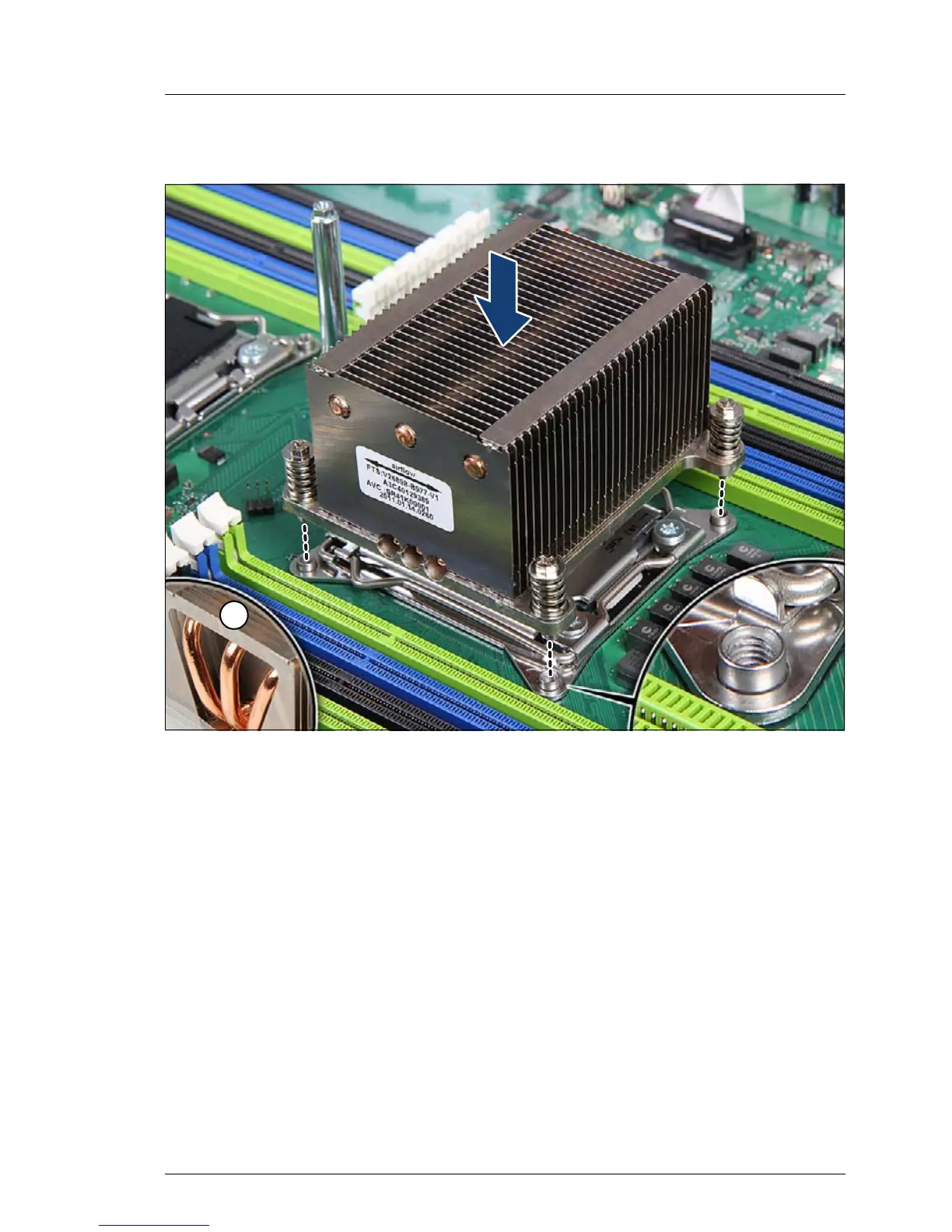

Figure 160: Installing the heat sink (A)
Ê Align the heat sink with the uncovered copper heat pipes (H, see above)
facing towards the PSU.
Ê Carefully seat the heat sink on the four threaded holes as shown (see close-
up).
V CAUTION!
– Ensure that the screws on the heat sink are properly seated on the
threaded holes.
– Ensure that the heat sink cooling fins match the direction of the
airflow!
