Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

162 Upgrade and Maintenance Manual RX300 S8
System fan
8.3 Removing the fan box
8.3.1 Preliminary steps
Ê "Locating the defective server" on page 51
Ê "Shutting down the server" on page 54
Ê "Disconnecting power cords" on page 54
Ê "Getting access to the component" on page 57
8.3.2 Removing the fan box

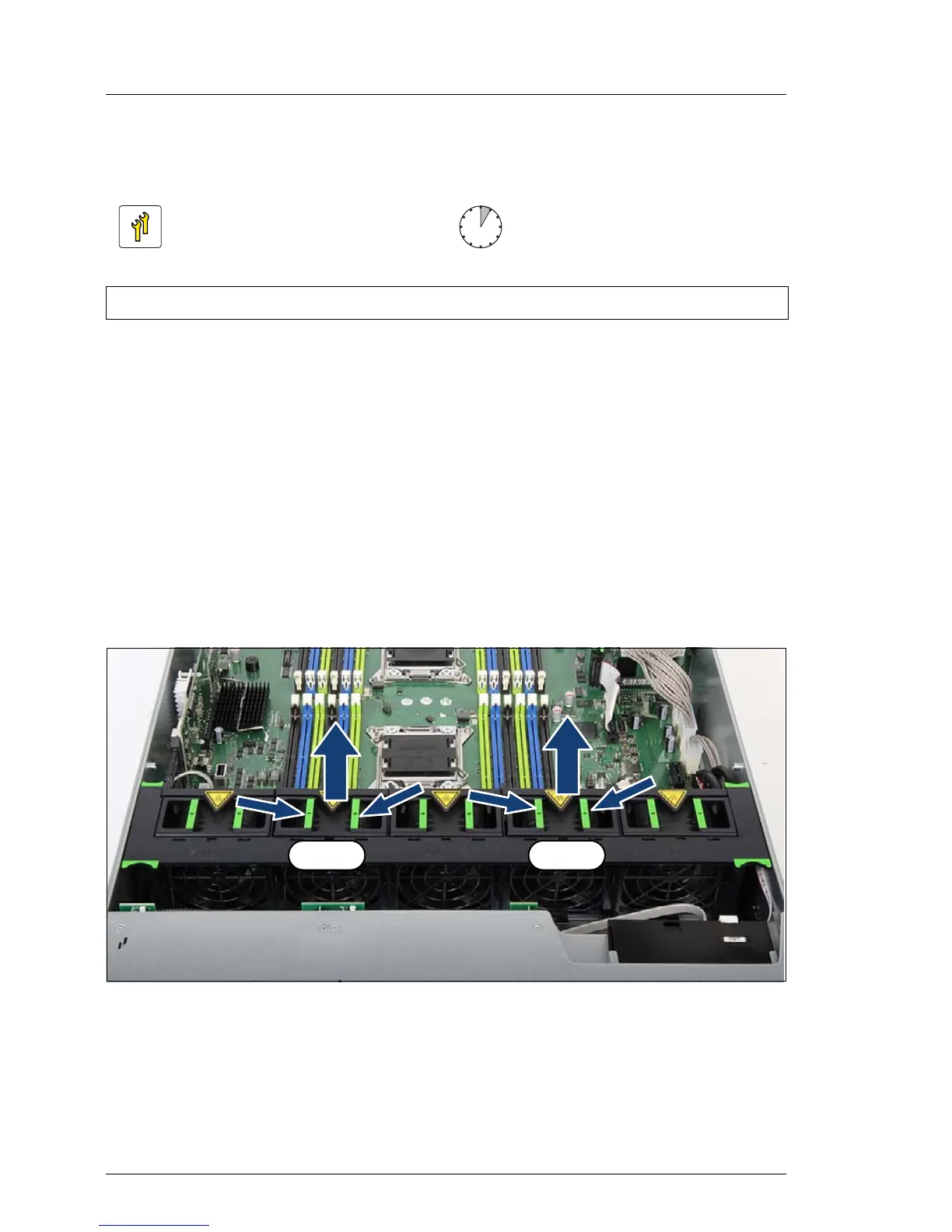

Figure 66: Removing a fan module
Ê Take the two system fans by the green touch points and lift the system fans
out of the fan box.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: screw driver
FAN 2 FAN 4

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
