RX300 S8
Upgrade and Maintenance Manual 271
Processors
11.2.2.4 Closing the load plate

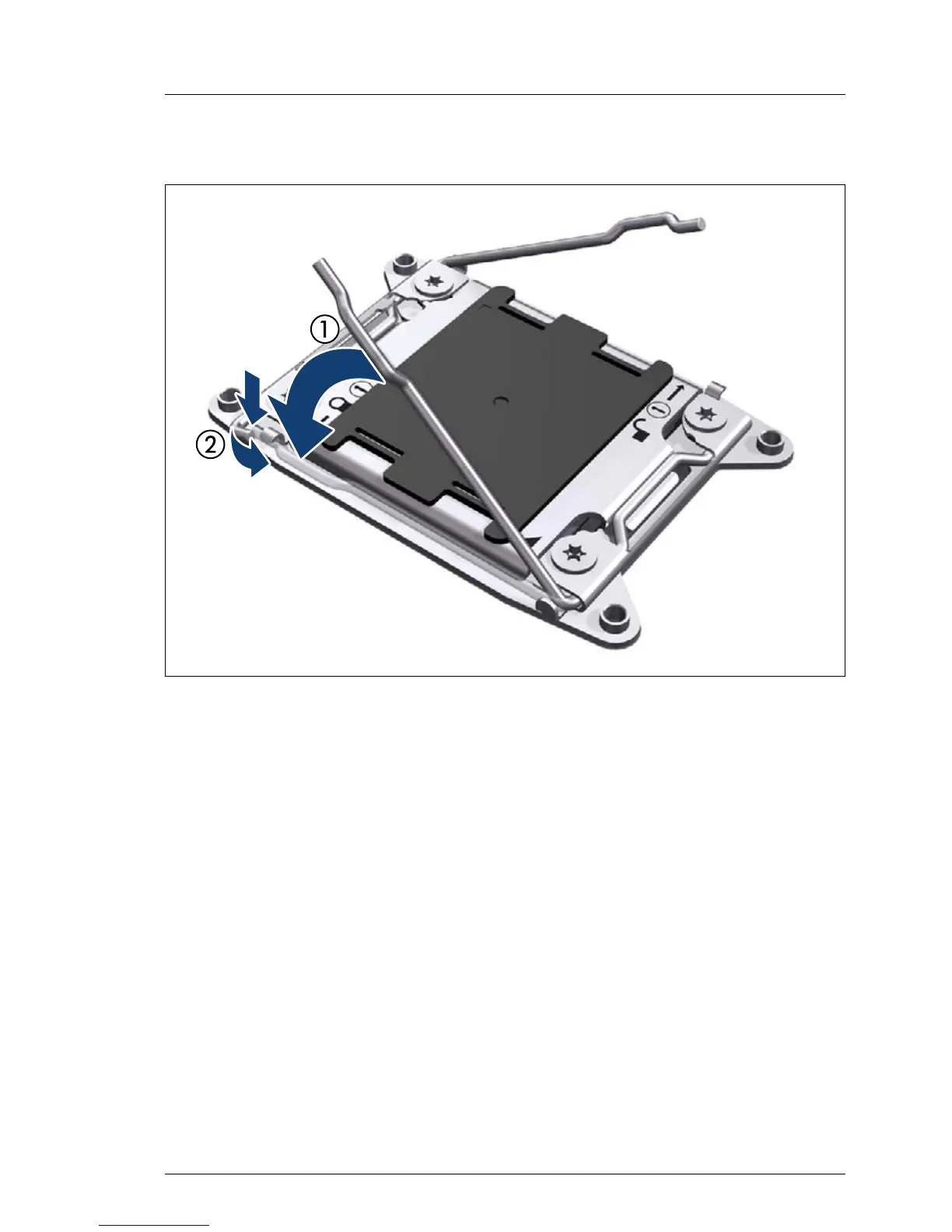

Figure 145: Closing socket release lever 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
