374 Upgrade and Maintenance Manual
RX300 S8
Front panel and external connectors
Ê Remove the front VGA cable from the system board (2).
Ê "Removing the front panel module" on page 363
13.2.2.3 Removing the front VGA connector

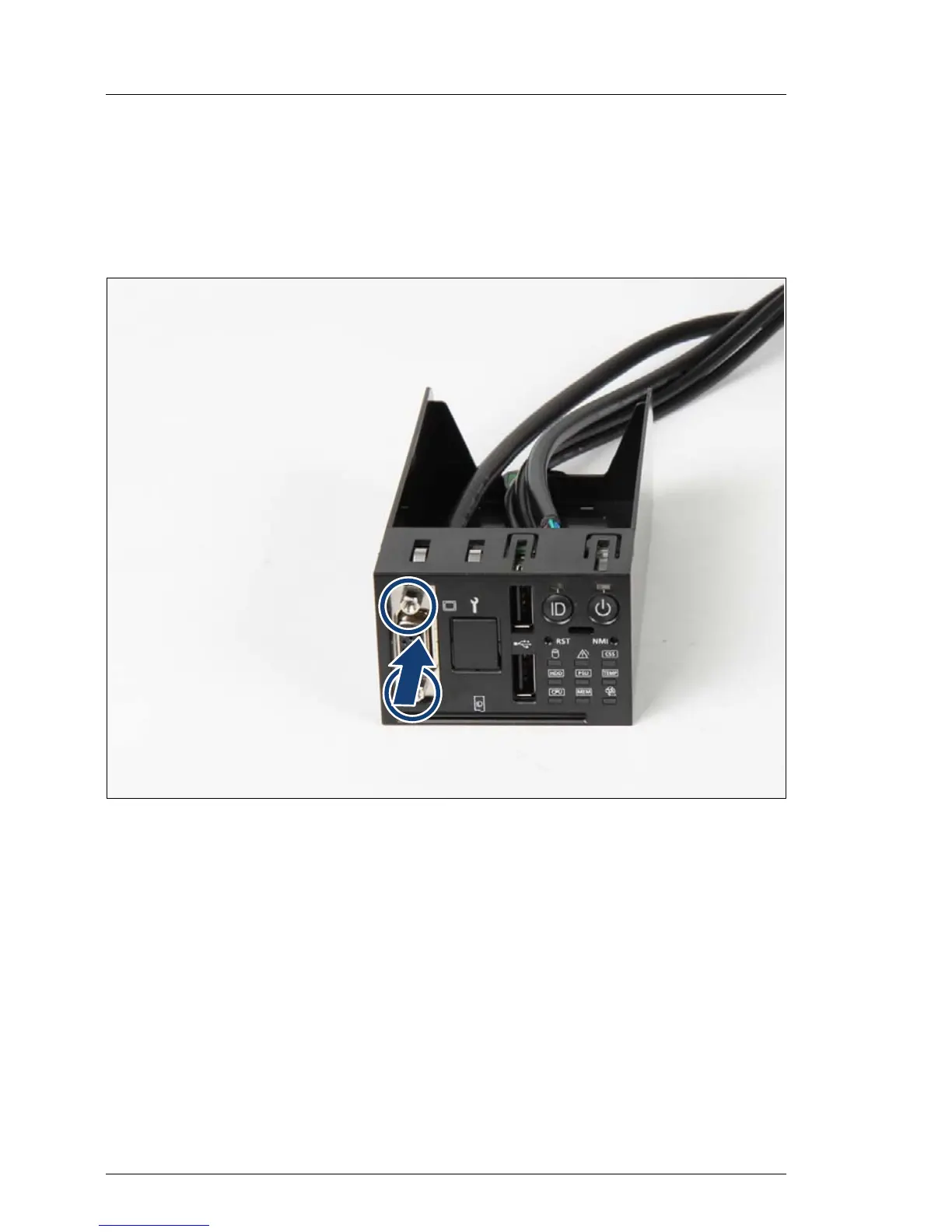

Figure 240: Removing front VGA connector from the front panel module
Ê Remove two hexagon bolts.
Ê Push the VGA connector out of the front panel module.
13.2.2.4 Re-installing the front panel module
Ê "Installing the front panel module" on page 365
13.2.2.5 Concluding steps
Ê "Installing the fan box" on page 164
Ê "Reassembling" on page 63
