164 Upgrade and Maintenance Manual
RX300 S8
System fan
8.3.3 Installing the fan box

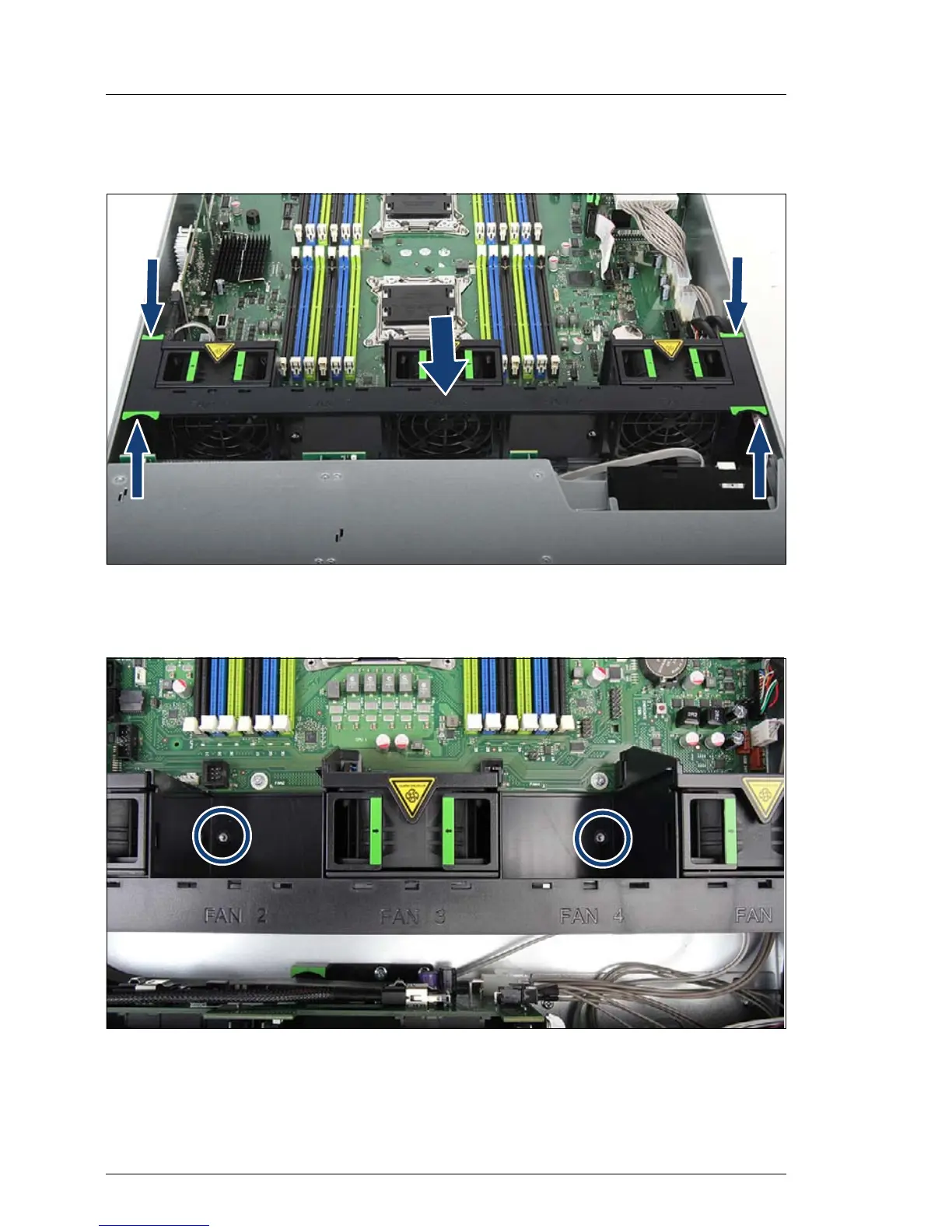

Figure 69: Installing the fan box
Ê Take the fan box by the green touch points and insert the fan box.
Figure 70: Installing the fan box
Ê Fasten the fan box with the 2 screws.
