436 Upgrade and Maintenance Manual
RX300 S8
System board and components

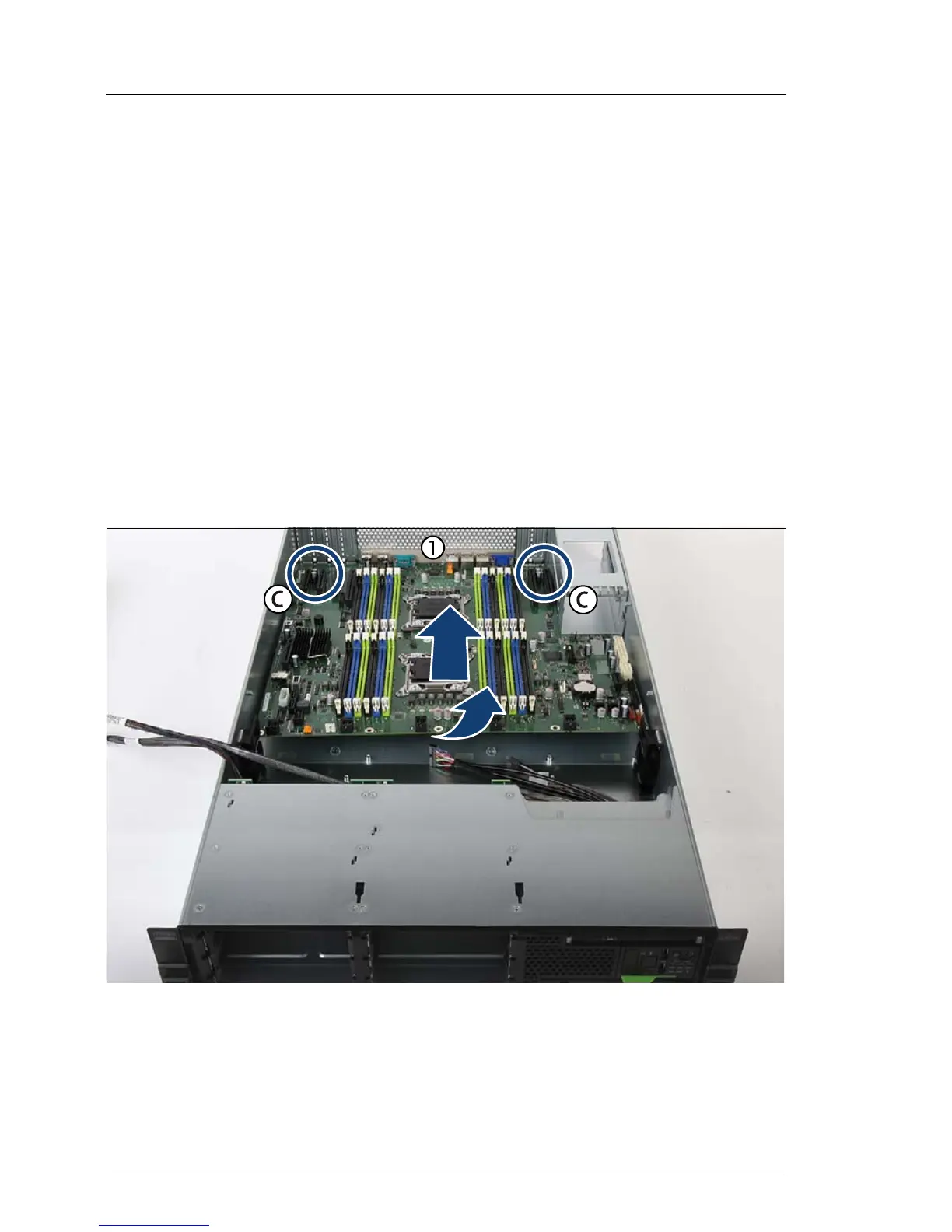

Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot (1) in order to detach it from the centering bolts (C).
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel.
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
Ê "Removing the TPM" on page 421
Ê Remove the UFM spacer from the systemboard
14.6.3 Installing the system board
14.6.3.1 Mounting the system board
Figure 288: Installing the system board
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
