RX300 S8
Upgrade and Maintenance Manual 435
System board and components

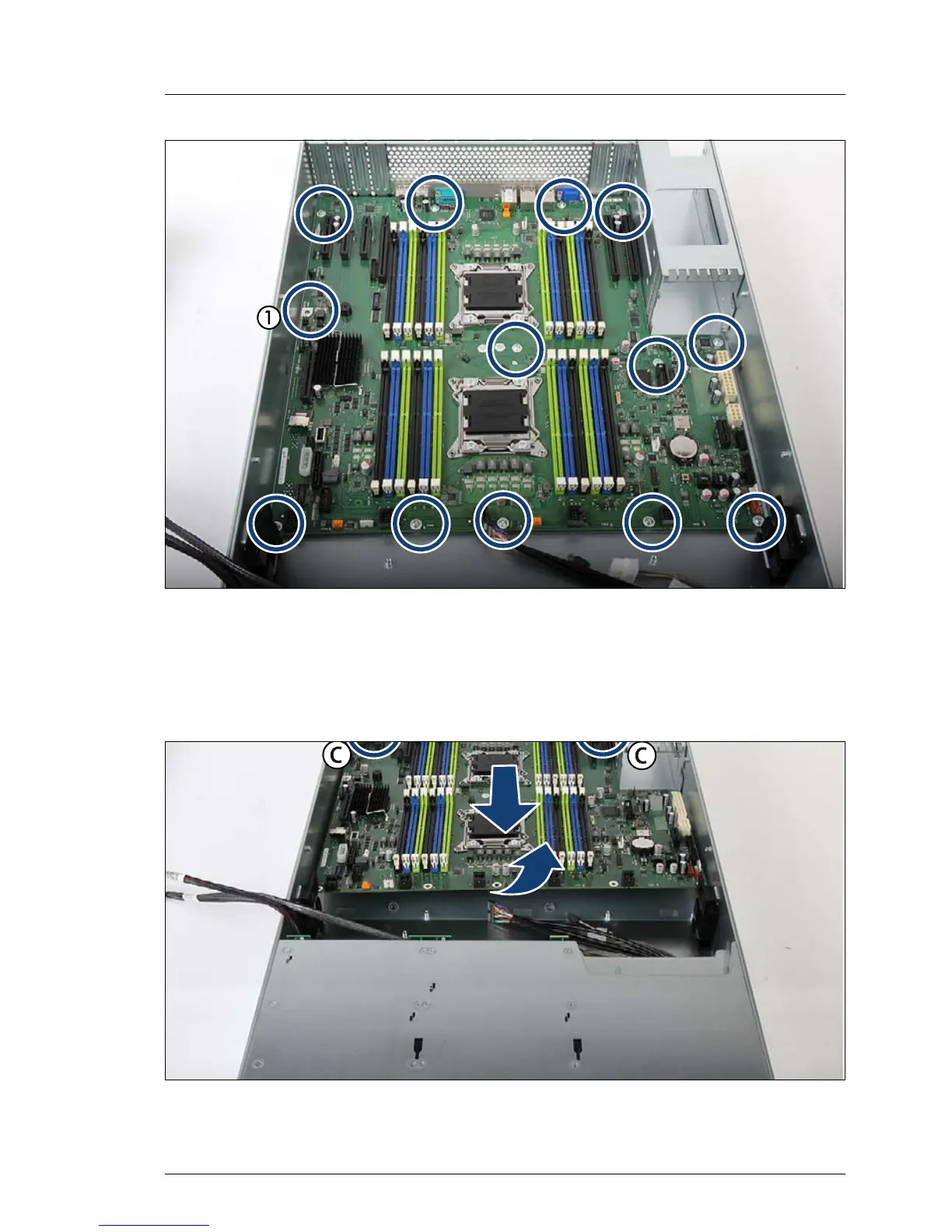

Figure 286: Detaching the system board
Ê Remove 13 screws from the system board (see circles).
I If there was an SAS RAID controller installed the screw (1) is already
removed.
Figure 287: Removing the system board
