282 Upgrade and Maintenance Manual
RX300 S8
Processors
11.3.2.5 Closing the load plate

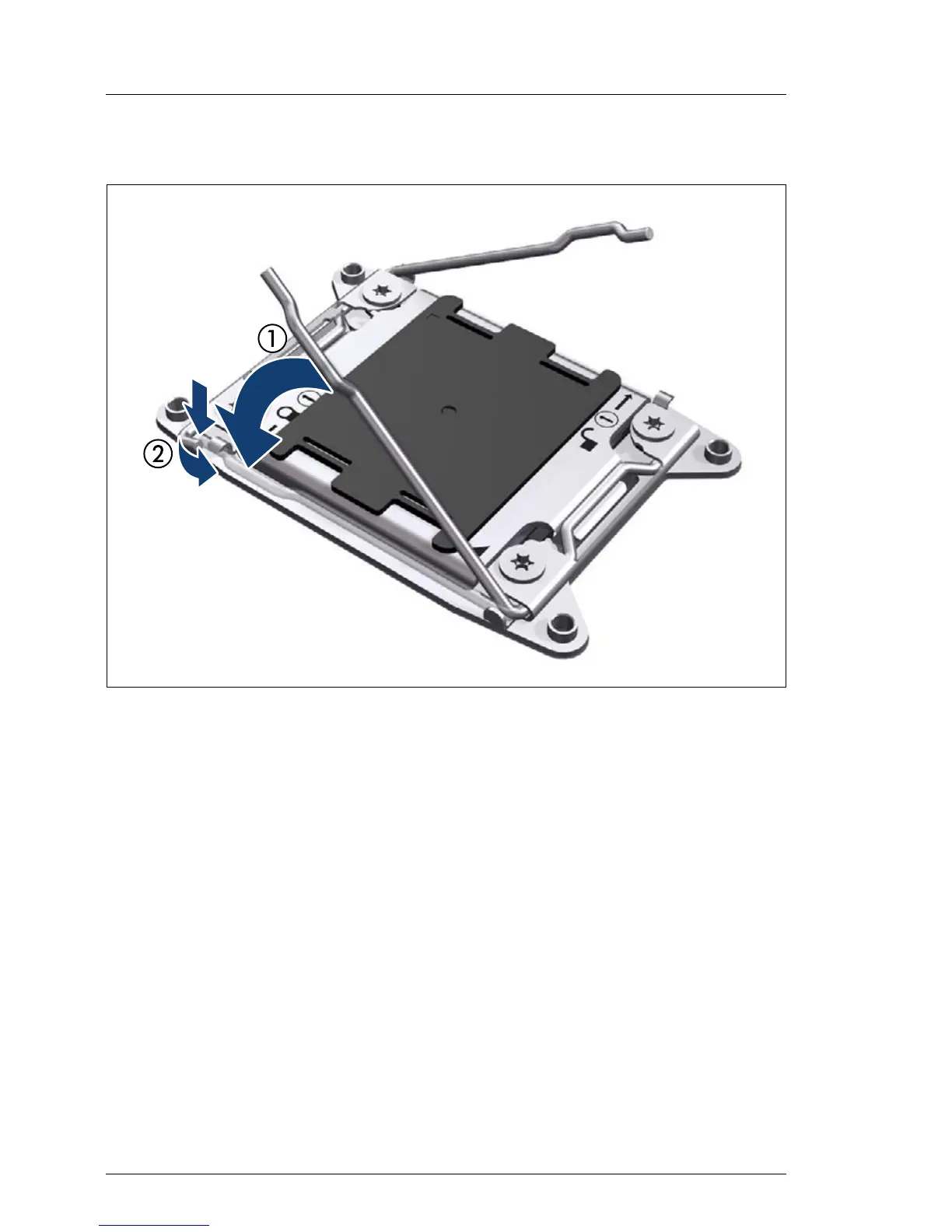

Figure 155: Closing socket release lever 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
