RX300 S8
Upgrade and Maintenance Manual 349
Accessible drives
LTO3 drive

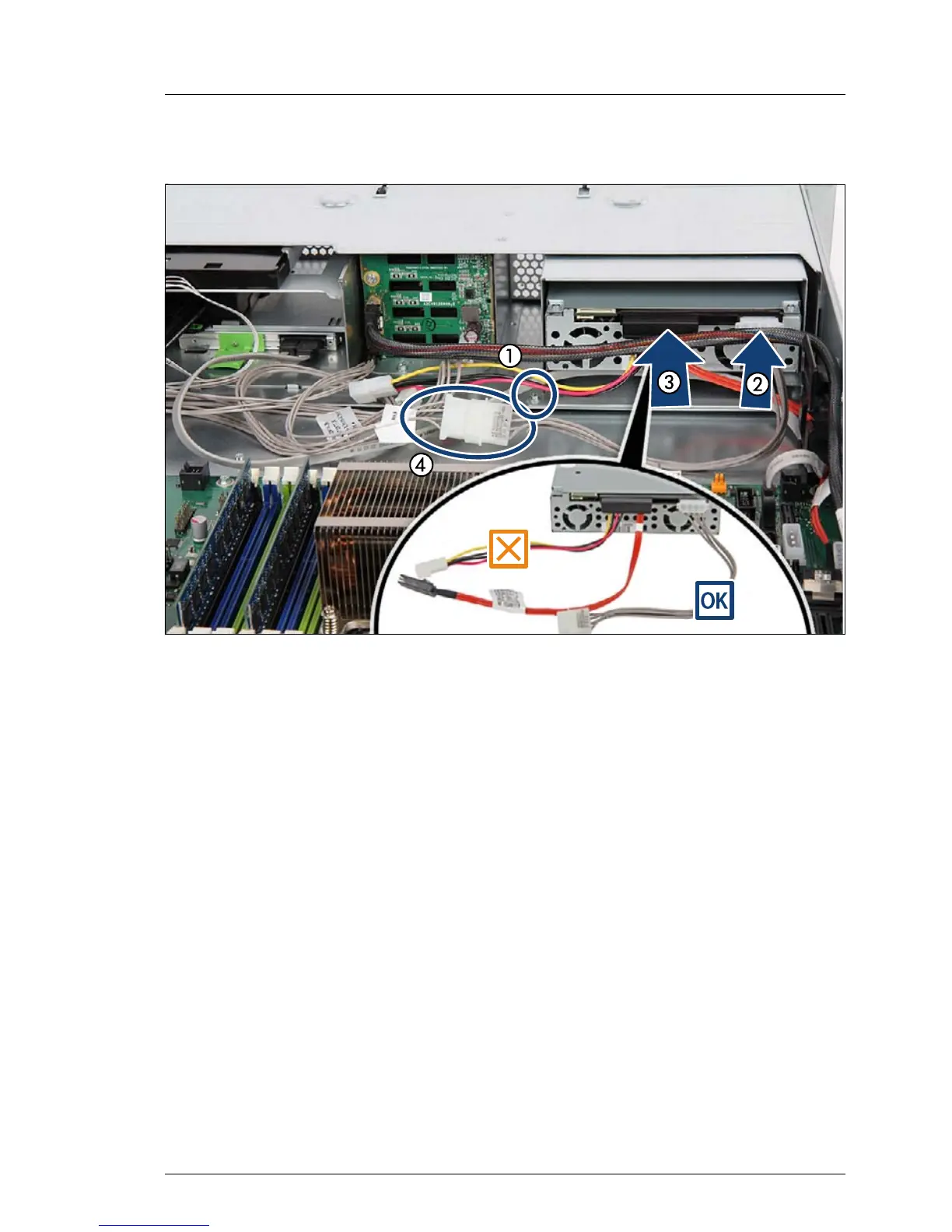

Figure 218: Connecting the cables to the LTO3
Ê Fasten the drive cage with the screw (1).
Ê Connect the power cable to the LTO drive (2).
Ê Connect the cable to the LTO drive (3).
V CAUTION!
Do not use the power supply cable (short ende) of cable (C18) that is
connected to connector (A). Use the cable (2) (C16) for the
connecton to the power supply.
Ê Connect the cable to the power cable (4).
12.14.6 Concluding steps
Ê "Installing the fan box" on page 164
Ê "Installing the front cover" on page 446
Ê "Reassembling" on page 63
