Fujitsu PRIMERGY RX300 S8

348 Upgrade and Maintenance Manual RX300 S8
Accessible drives
LTO4/5/6 drive

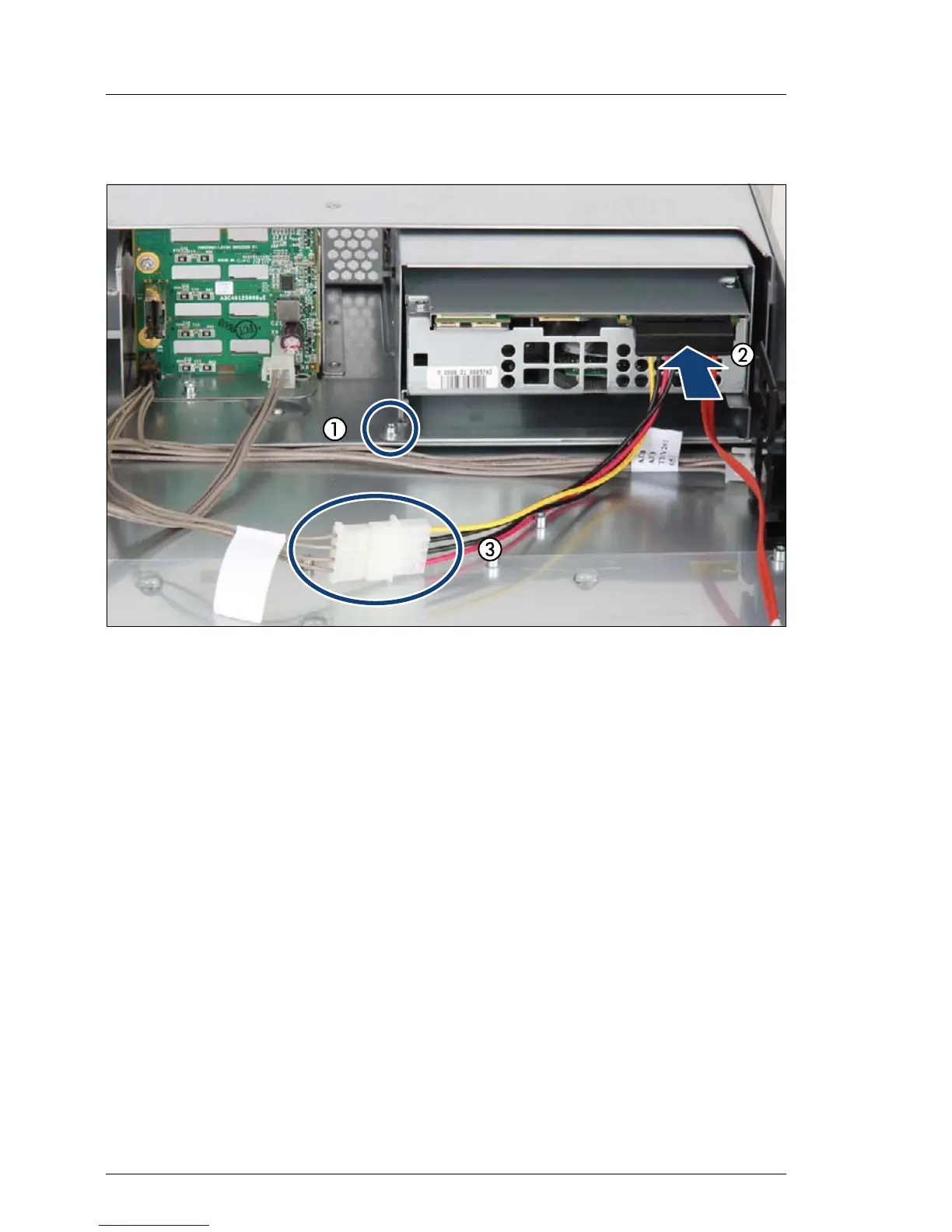

Figure 217: Connecting the cables to the LTO4/5/6
Ê Fasten the drive cage with the screw (1).
Ê Connect the cable to the LTO drive (2).
Ê Connect the cable to the power cable (3).
