318 Upgrade and Maintenance Manual
RX300 S8
Accessible drives
Ê Remove the drive cage see section "Removing the drive cage" on
page 324.
Ê Remove the tape drive dummy module.
– 3.5-inch HDDs or 3.5-inch dummy module are installed
Ê Remove HDD or dummy module 5 and 6 see section "Removing
3.5-inch HDD modules" on page 127

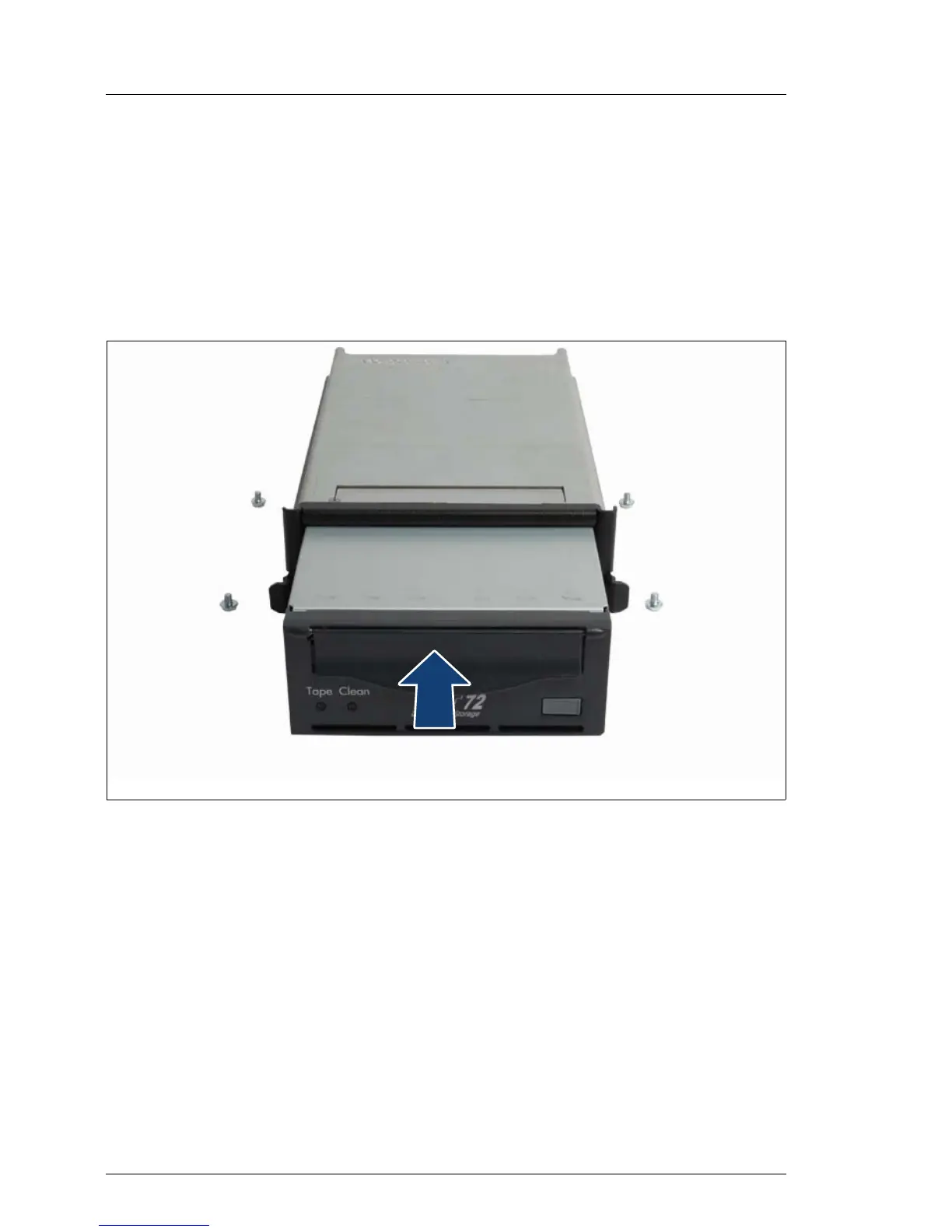

Figure 187: Inserting the tape/RDX drive
Ê Insert the tape/RDX drive into the cage and push in.
