Fujitsu PRIMERGY RX300 S8

352 Upgrade and Maintenance Manual RX300 S8
Accessible drives
LTO3 drive

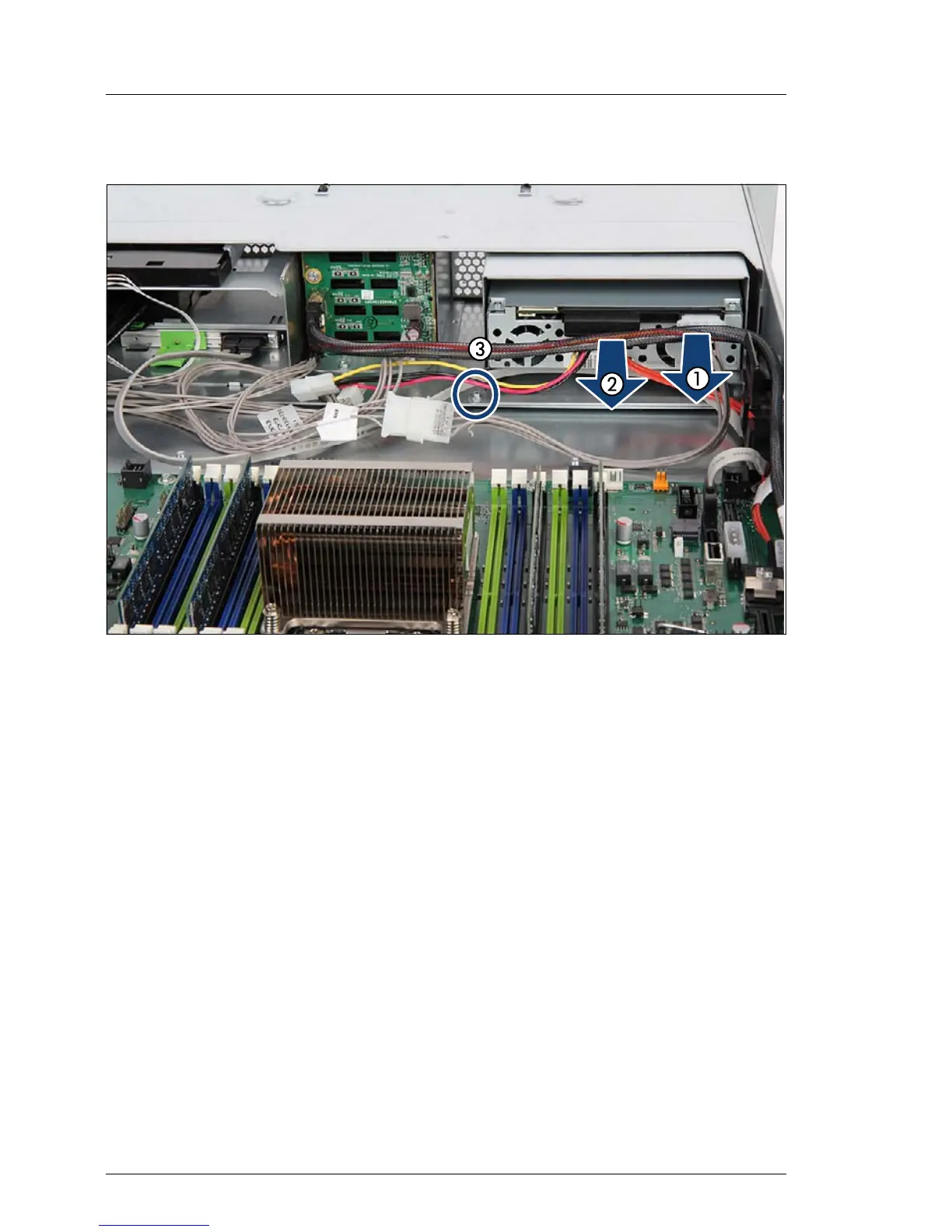

Figure 220: Unlocking the drive cage
Ê Remove the power cable from the LTO drive (1).
Ê Remove the cable from the LTO drive (2).
Ê Remove the screw that fixed the drive cage in the bay (3).
