364 Upgrade and Maintenance Manual
RX300 S8
Front panel and external connectors

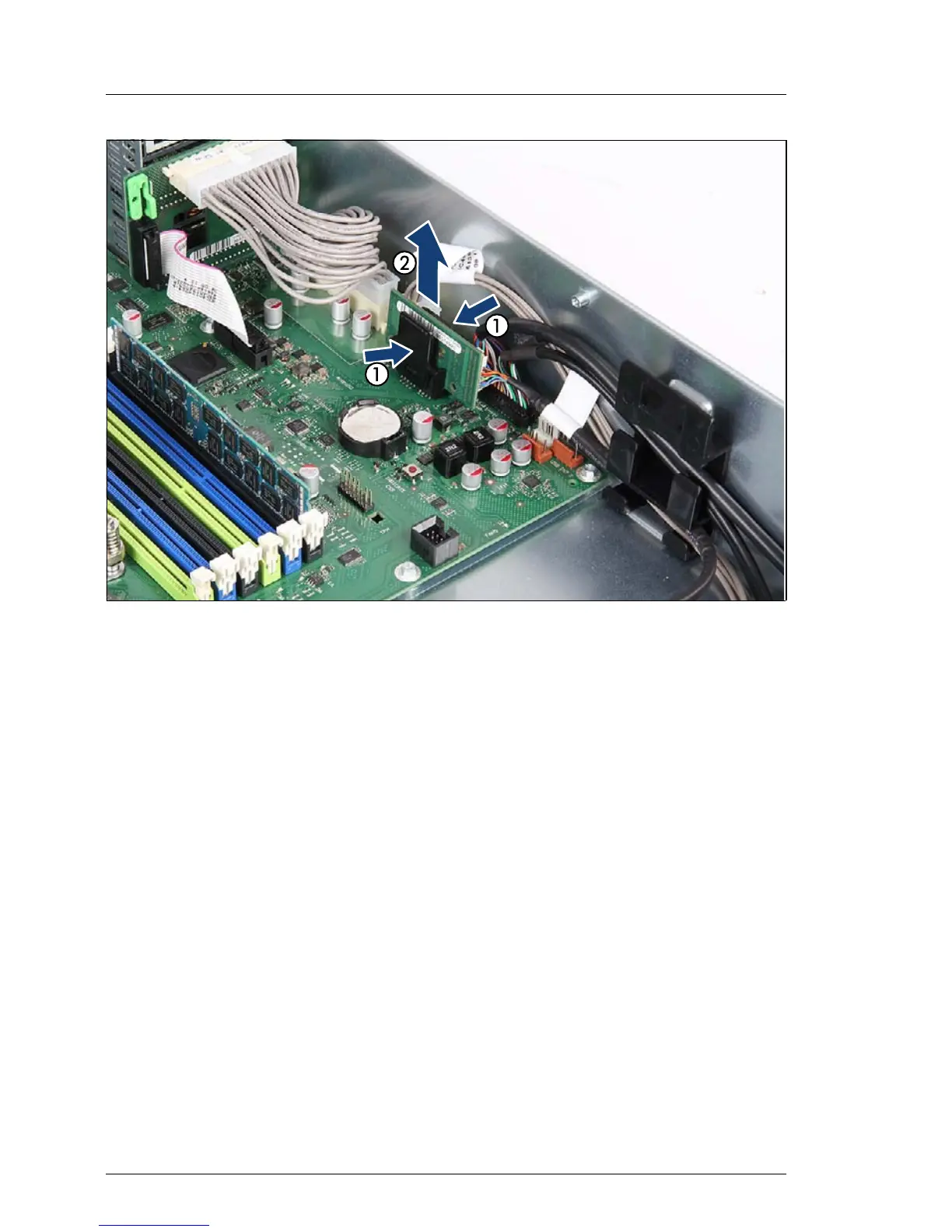

Figure 230: Disconnecting front panel cables
Ê If applicable, disconnect the front LAN board from the system board:
Press in on the locking latch on the front LAN board holder (1) and pull the
front LAN board holder with the front LAN board out of its socket (2).
