RX300 S8
Upgrade and Maintenance Manual 227
Expansion cards and backup units

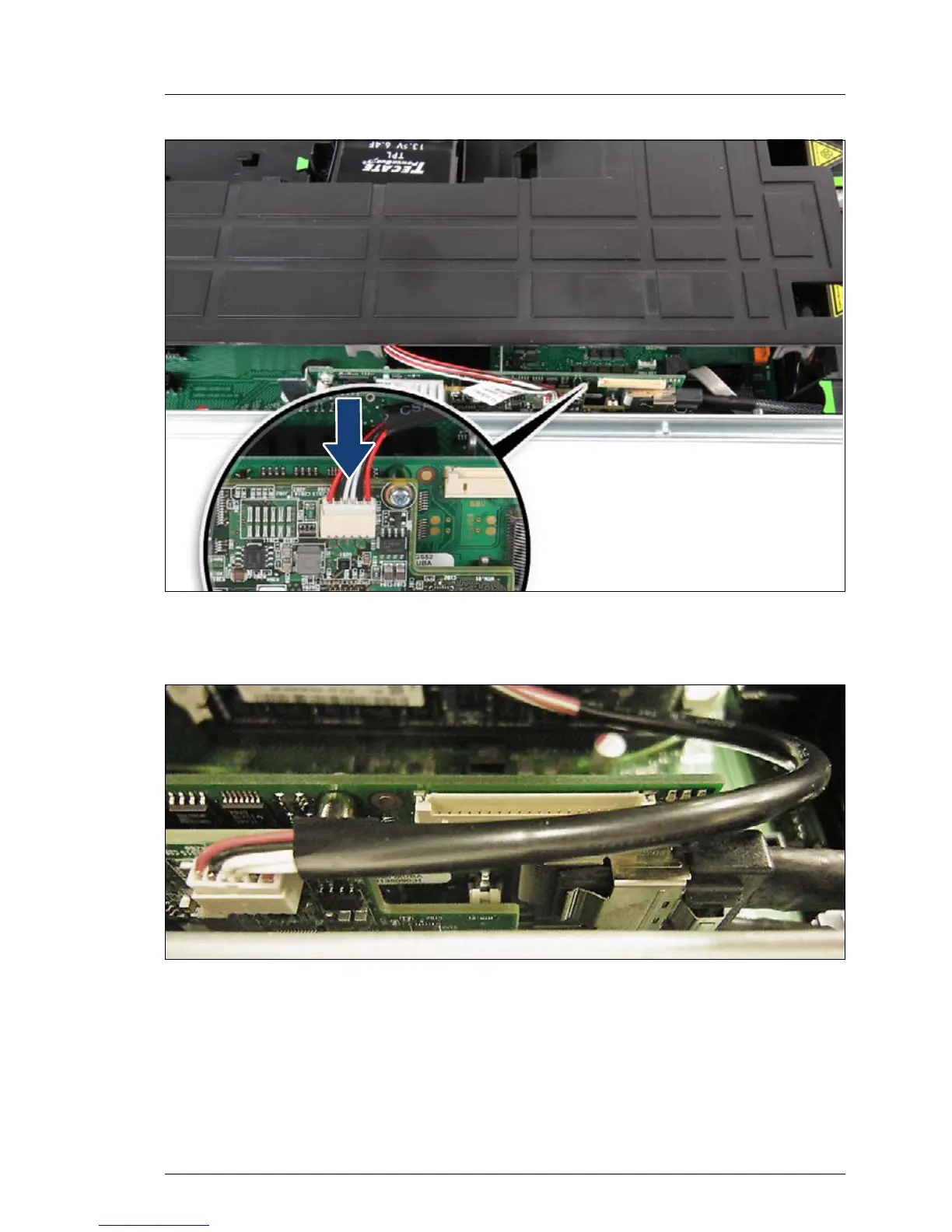

Figure 116: Connecting the FBU to the controller
Ê Connect the FBU cable to the RAID controller.
Figure 117: Routing the FBU cable
Ê Route the cable in such a way that the cable is not pinched under the air
duct.
