RX300 S8
Upgrade and Maintenance Manual 457
Conversion configurations

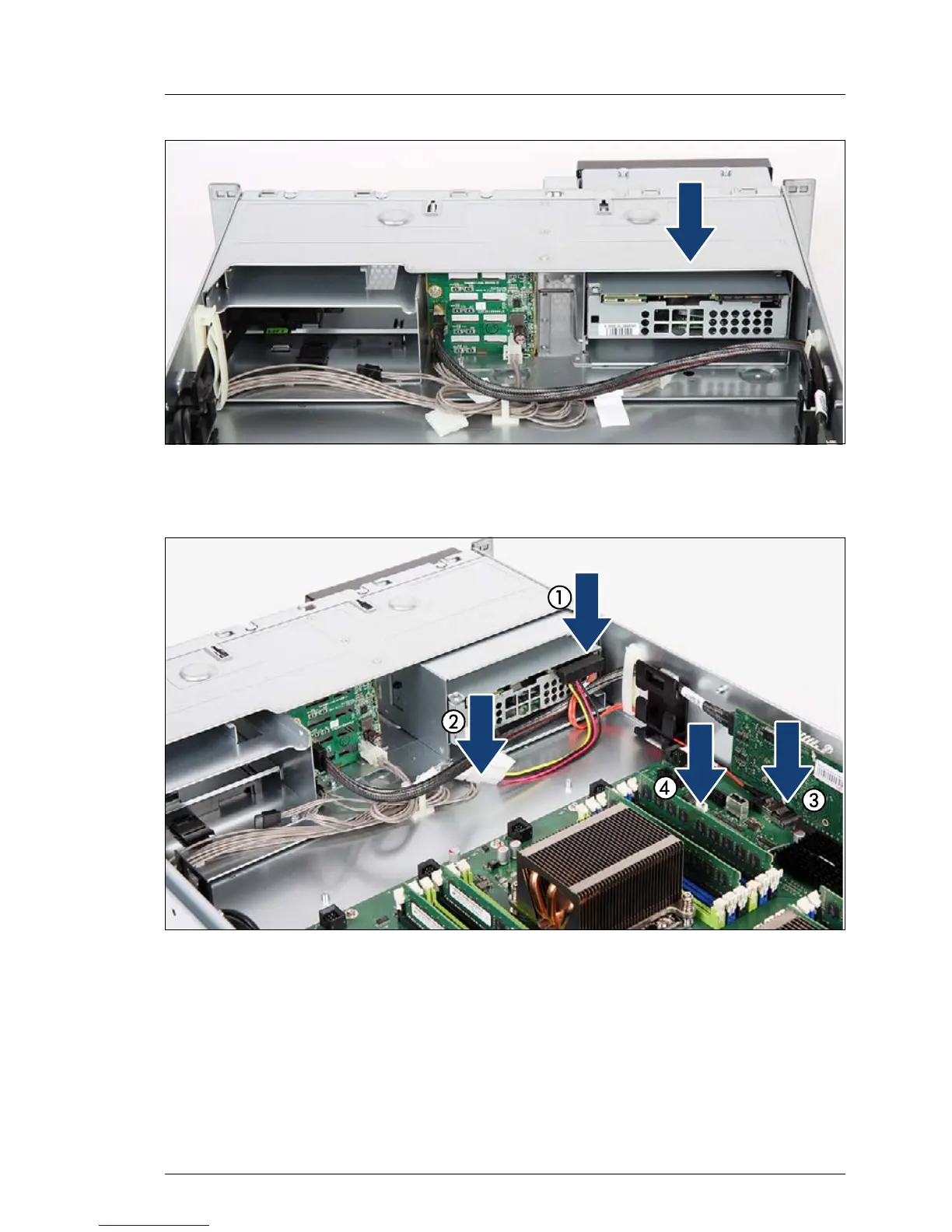

Figure 312: Installing LTO drive
Ê Insert the LTO drive.
Figure 313: Connecting LTO drive cables
Ê Connect the cable C18 to LTO drive (1).
Ê Connect the power cable to the connector of the power cable (2).
Ê Connect the cable C18 to the connector SAS 1-4 of the system board (3).
Ê Insert the SKU/SCU key see section "Installing the onboard SAS enabling
key" on page 425 (4).
