456 Upgrade and Maintenance Manual
RX300 S8
Conversion configurations

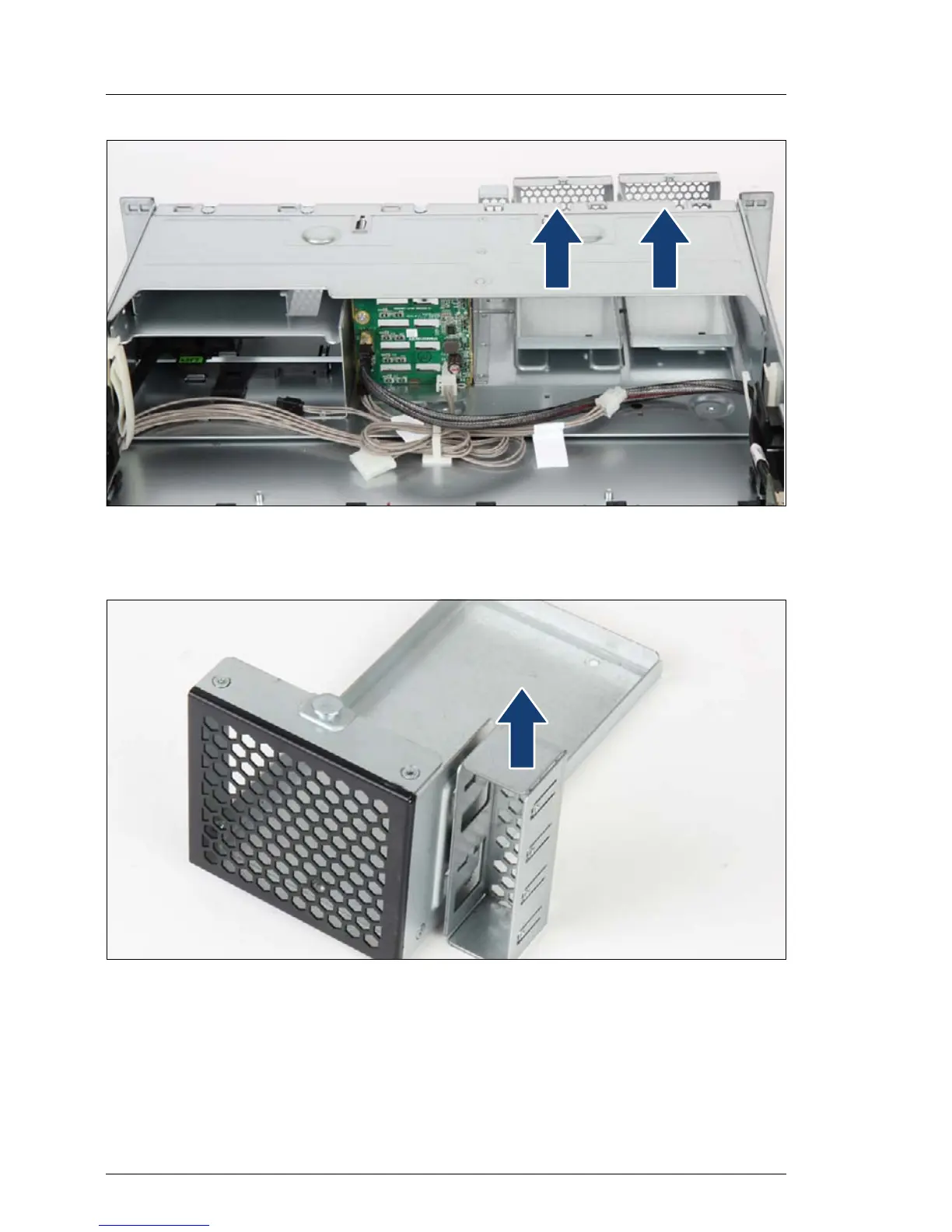

Figure 310: Removing the 2.5-inch dummy cages
Ê Remove the dummy cages.
Figure 311: Removing the cover plate from the 2.5-inch dummy cage
Ê Remove the cover plate from the dummy cage.
Ê Prepare the LTO drive see section "Installing an LTO drive in 2.5-inch
version" on page 340.
