Fujitsu PRIMERGY RX300 S8 Upgrade And Maintenance Manual

460 Upgrade and Maintenance Manual RX300 S8
Conversion configurations
Ê If applicable connect the optional front LAN and front VGA cables to the
system board see sections "Installing the front LAN connector" on page 376
and "Installing the front VGA connector" on page 369.

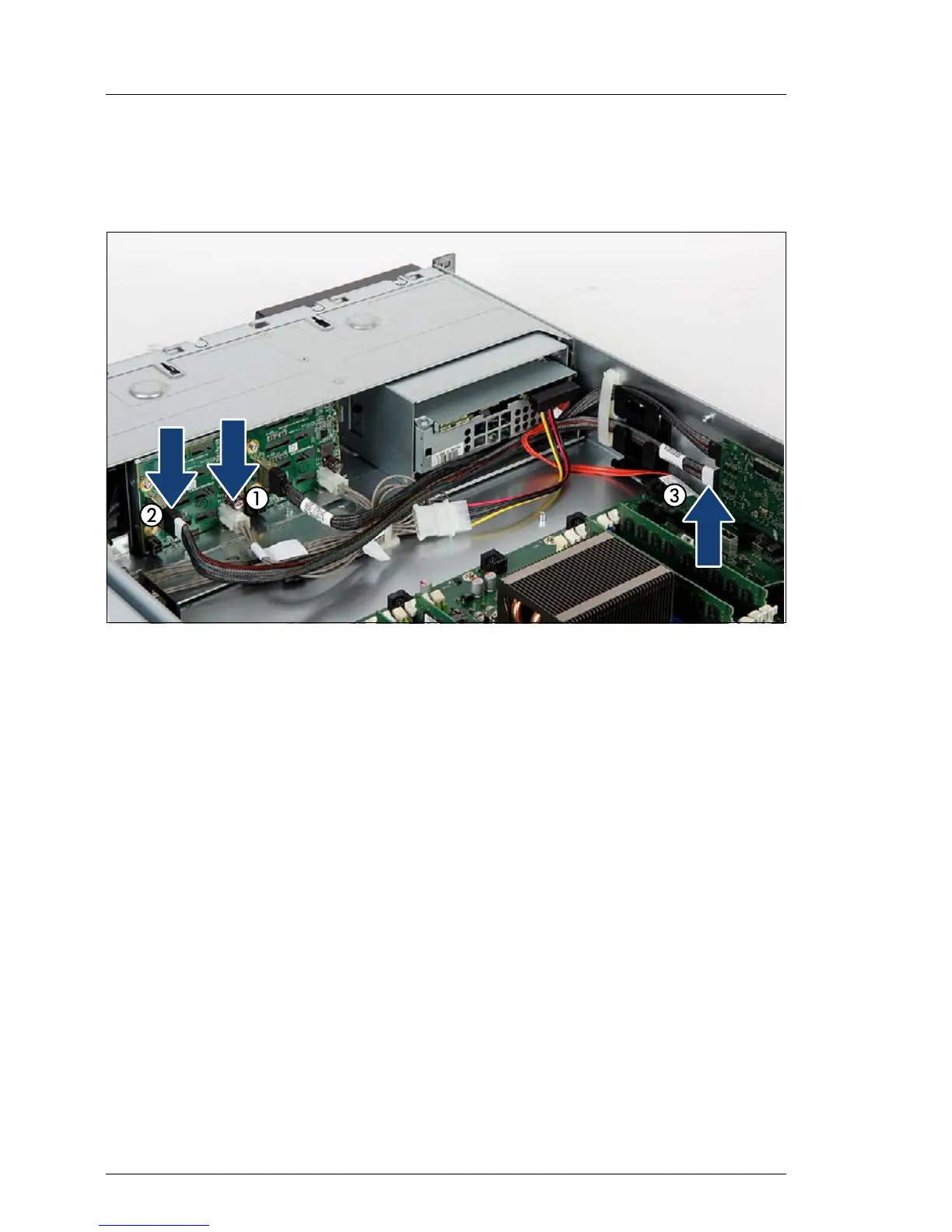

Figure 317: Connecting cables
Ê Connect the power cable to the connector of the power cable (1).
Ê Connect the cable C11 to connector X1 of the 4x 2.5-inch HDD
backplane (2) and the connector MLC2 of the SAS controller (3).
Ê Route the cables as shown.

Fujitsu PRIMERGY RX300 S8 Specifications

General

Memory	Up to 768 GB DDR3
Form Factor	2U rack server
Remote Management	iRMC S4 (Integrated Remote Management Controller)
Chipset	Intel C602
Processor	Intel Xeon E5-2600 v2 product family
Storage	Up to 16 x 2.5" or 8 x 3.5" drives
RAID	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x Gigabit Ethernet ports
Expansion Slots	6 x PCIe 3.0 slots
Operating System Support	Windows Server, Red Hat, SUSE, VMware
Memory Type	DDR3 RDIMM/LRDIMM
Power Supply	Hot-plug redundant power supply units
