RX300 S8
Upgrade and Maintenance Manual 199
Expansion cards and backup units

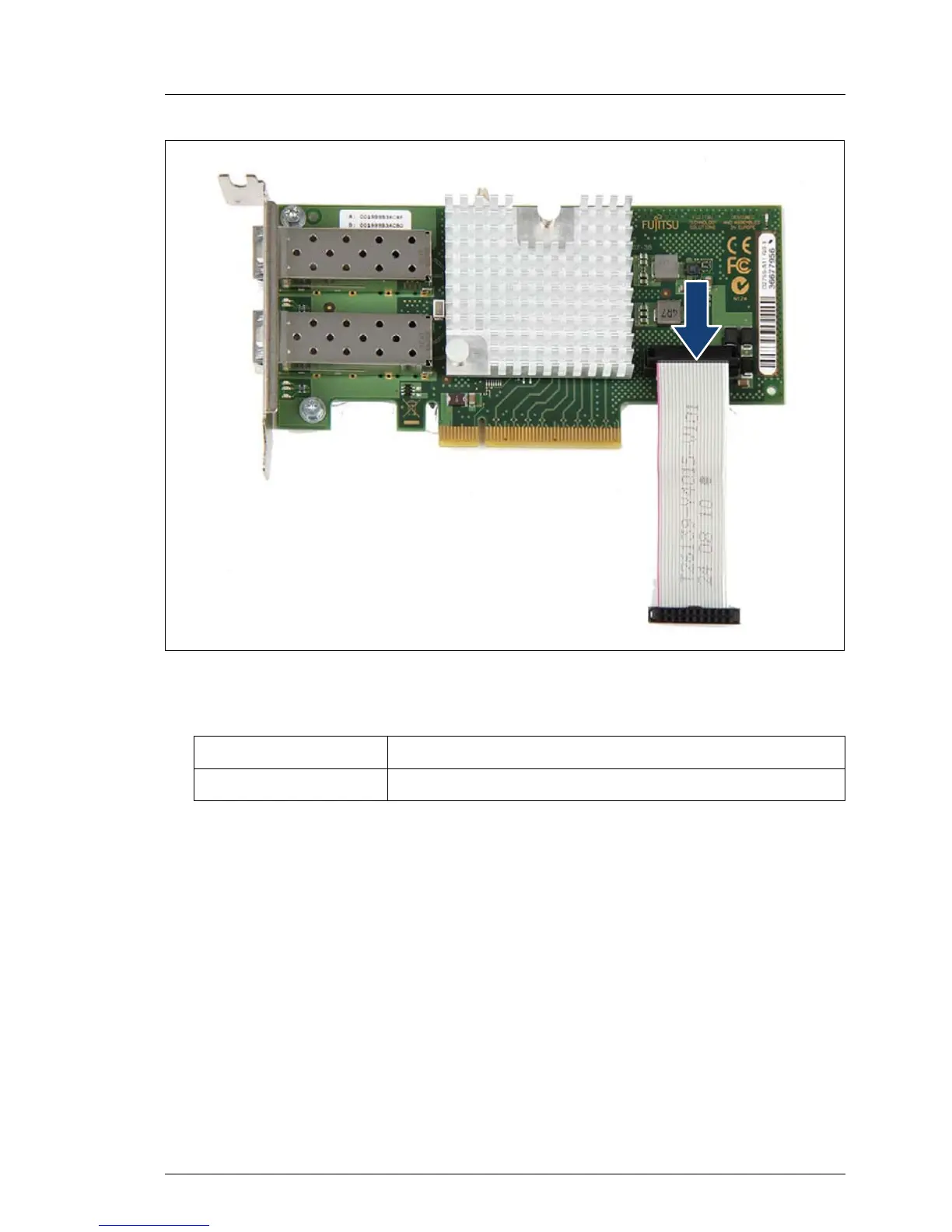

Figure 95: Connecting the NCSI sideband cable
Ê Connect the NCSI sideband cable to the Modular LAN controller:
I For a complete cabling overview, please refer to section "List of used
cables" on page 465.
Connector Cable
20-pin (black) NCSI sideband cable T26139-Y4015-V101
