304 Upgrade and Maintenance Manual
RX300 S8
Accessible drives
Ê Remove the LSD cable from the LSD module (1) and the connector on the
system board (2).

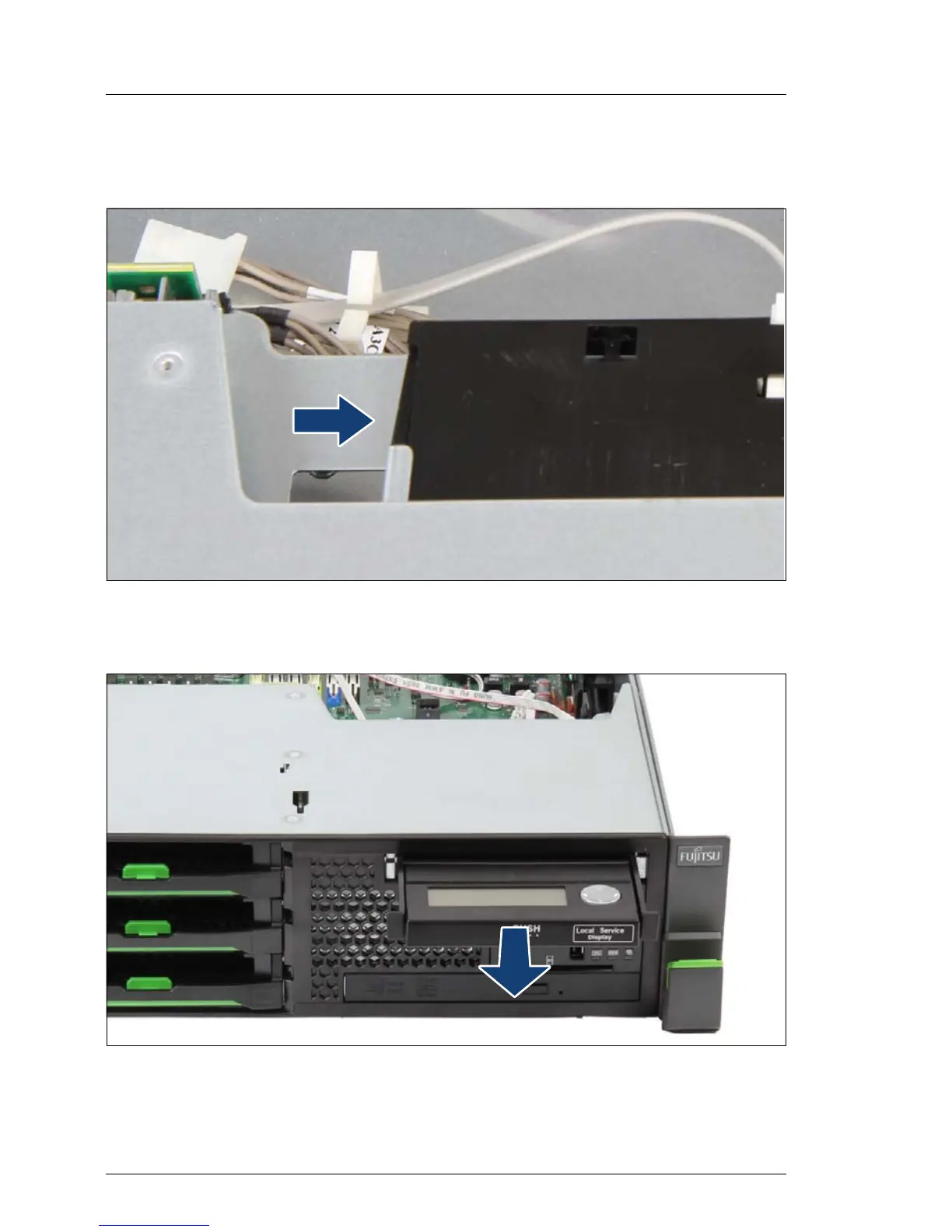

Figure 174: Unlocking the LSD module
Ê Press in on the locking latch to disengage the LSD module.
Figure 175: Unlocking the LSD module
Ê Pull the LSD module out of the bay.
