RX300 S8
Upgrade and Maintenance Manual 387
Front panel and external connectors
Ê Disconnect the front LAN board from the system board:
Press in on the locking latch on the front LAN board holder (1) and pull the
front LAN board out of its socket (2).
Ê Remove the front panel connector see "Removing the front panel module"
on page 369.

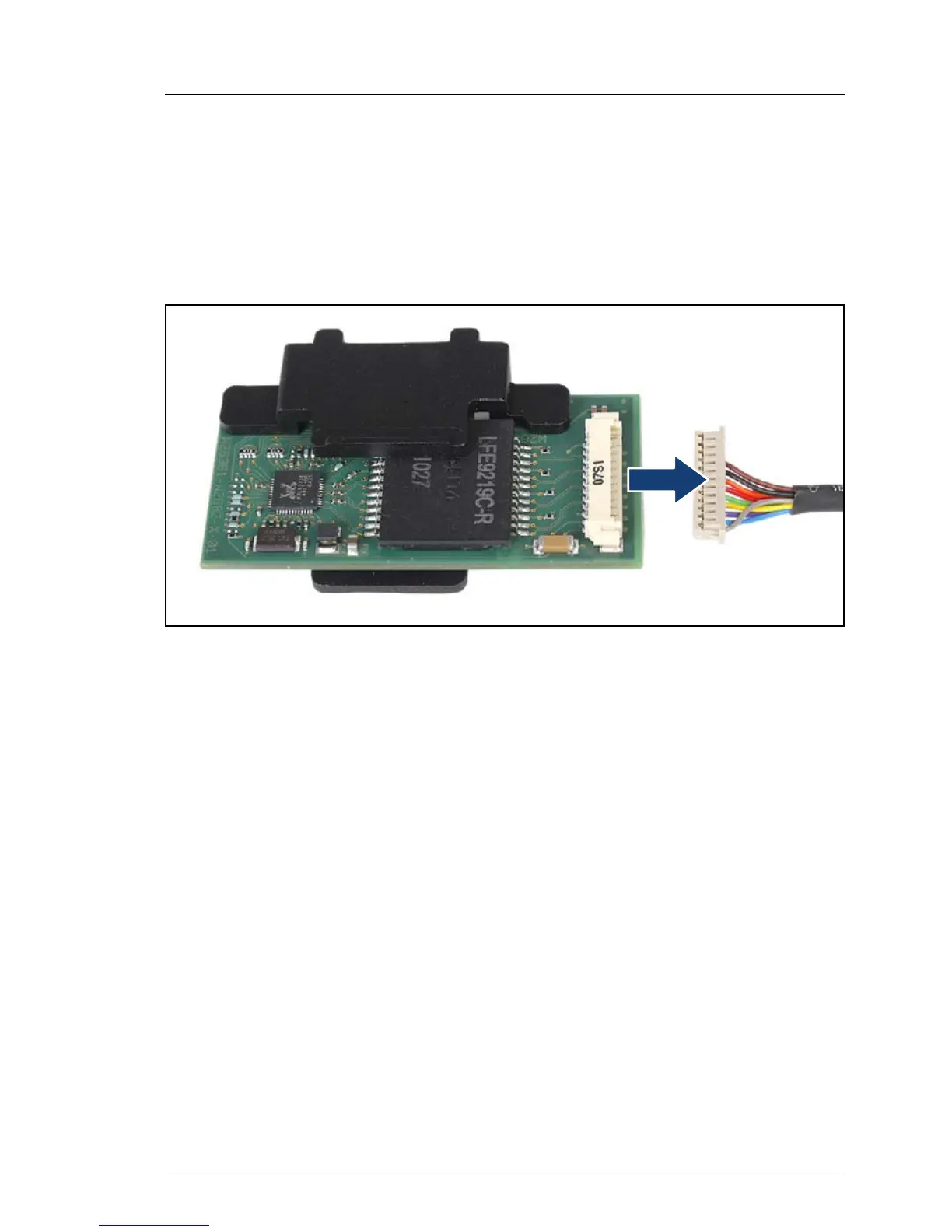

Figure 252: Disconnecting the front LAN cable
Ê Disconnect the front LAN cable from the front LAN board.
Ê Remove the front LAN board from the chassis.
Ê "Removing the front panel module" on page 363
