Fujitsu PRIMERGY RX300 S8

422 Upgrade and Maintenance Manual RX300 S8
System board and components
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê Remove the TPM screw.
Ê Remove the defective TPM on the upper side of the system board.

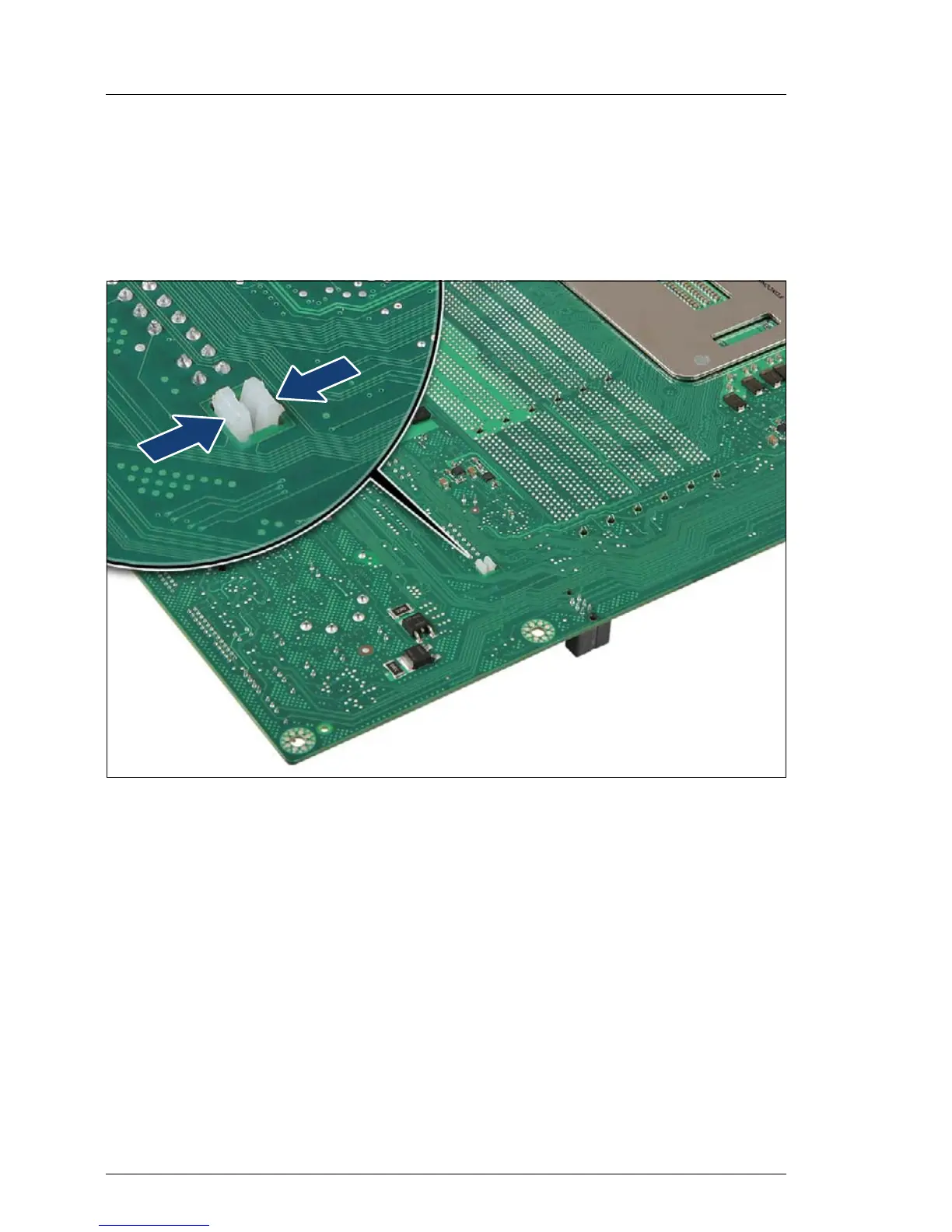

Figure 280: Removing the TPM spacer
Ê Using a small pair of combination pliers, press together the hooks on the
TPM spacer (see close-up) and remove it from the system board.
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
