Honeywell SmartPAC 2 User Manual

1126800 SmartPAC 2 with WPC Integration
Page 86 Chapter 2 Installing SmartPAC 2 and WPC
Cam 4
Solid State Relays
Channels 5-8
LEDs for channels
Connection to Control
Relay 1
K301
Relay 2
K302
Relay 3
K303
Relay 4
K304
Relay 5
K305
Relay 6
K307
Relay 7
K309
Relay 8
K311
use only one relay
(mechanical or solid state)
for each channel
Mechanical
Relays
TB303
TB302
CHAN 1CHAN 2CHAN 3CHAN 4CHAN 5CHAN 6CHAN 7CHAN 8
Fuses
DS301
TB301
Cam 1Cam 3 Cam 2Cam 8Cam 7Cam 6Cam 5

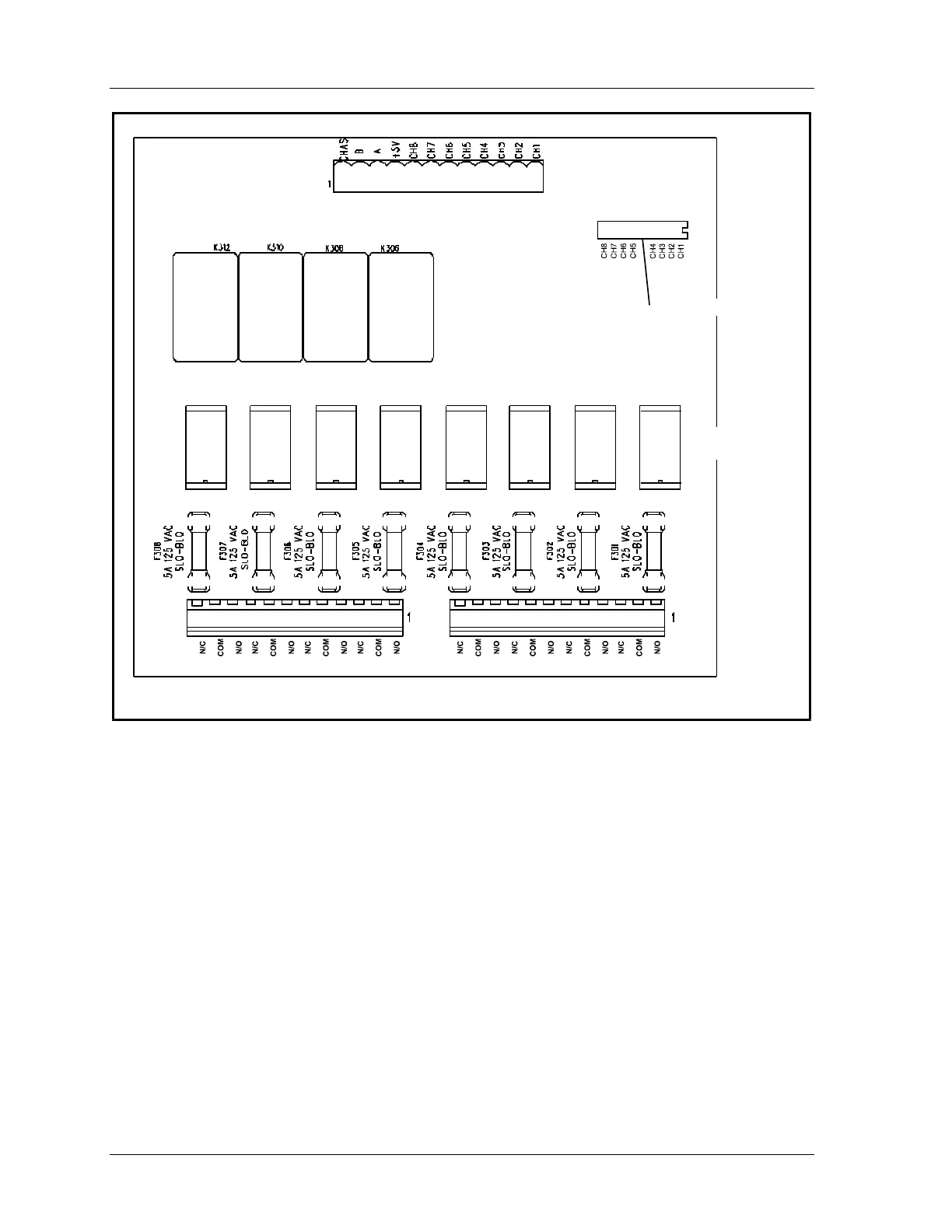

Figure 2 - 23. Cam Outputs Board
See previous figure for mounting hole locations.
