FT-Lightwave Booster Amplifier (FT-LBA) for
Extended Distances 2
The FT-LBA can be used with the FT-2000 OC-48 Add/Drop-Rings Terminal
equipped with Release 5.0.1-ADR or later software to extend the distance
between sites (Figure 2-16). The FT-LBA is a miscellaneously-mounted shelf that
provides optical amplifiers. The optical amplifiers supply 9, 12, or 16 dBm of
optical output power.

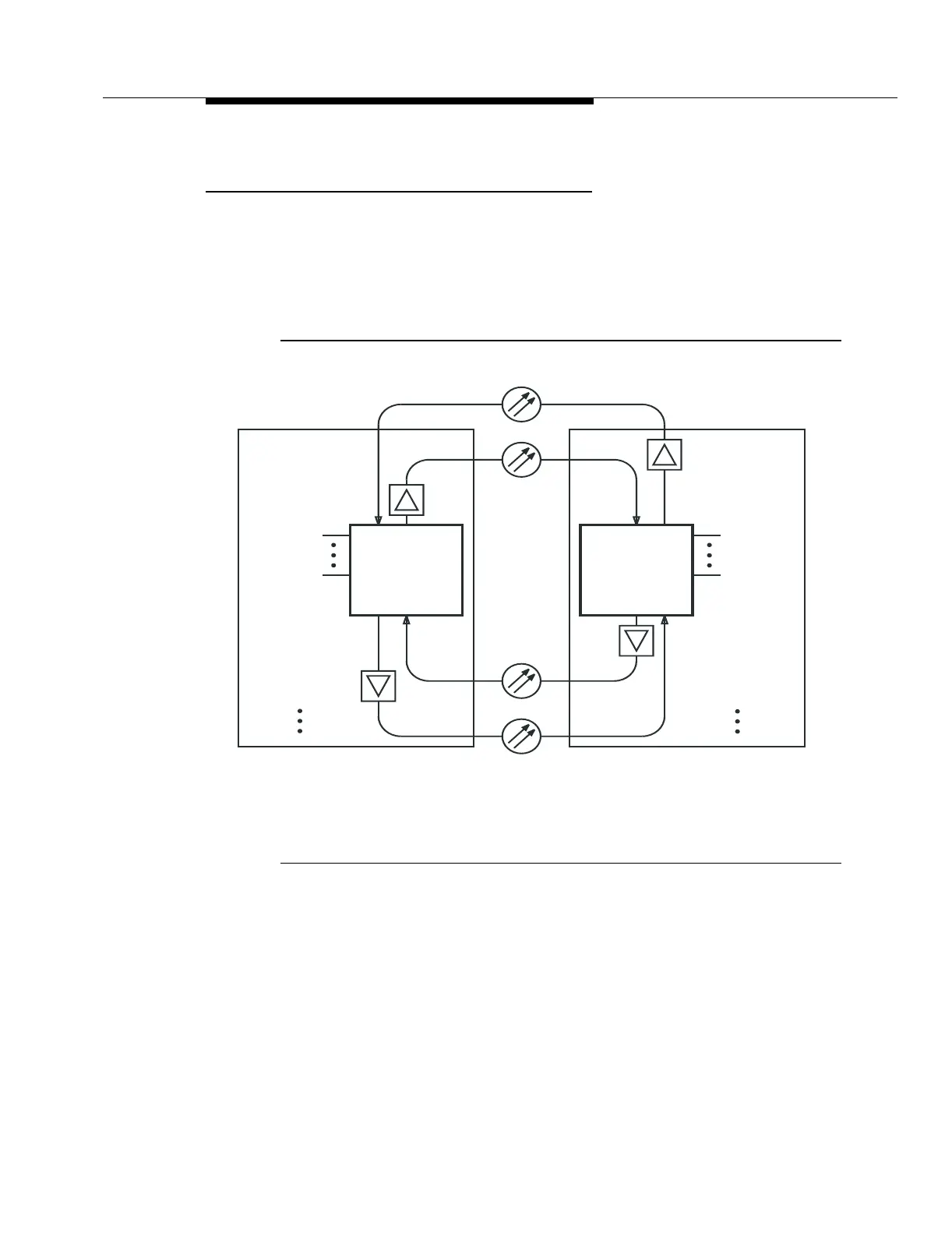

Figure 2-16. Operation with FT-Lightwave Booster Amplifier
The FT-2000 OC-48 Add/Drop-Rings Terminal and FT-LBA support span lengths
up to 140 km using standard fiber or 160 km using dispersion-shifted fiber. This
capability reduces the number of repeater sites on long routes. This capability
also allows the FT-2000 OC-48 Add/Drop-Rings Terminal and FT-LBA to be used
with poor fiber or fiber that has frequent, high-loss splices (for example, in urban
areas) or with dispersion-shifted fiber and terrestrial electronics (for example,
underwater/sea applications).
FT-2000*
OC-48
OC-48
FT-2000*
OC-48
OC-48
DS3
EC-1
OC-3
DS3
EC-1
OC-3
²
²
²
²
TO: DACS III-2000
DACS IV-2000
Digital Switch
DDM-2000
TO: DACS III-2000
DACS IV-2000
Digital Switch
DDM-2000
* FT-2000 OC-48 Add/Drop-Rings Terminal
² FT-LBA
Central Office Central Office
