Platform Descriptions
3-18 Issue 8.0 July 2002
Release 6.0.0-ADR or later software. The 739B4, 739J4, 739B5, 739C5, 739J5,
739P5, 739R5, and 739S5 OC48 TRMTR (A/D) circuit packs are compatible with
Release 7.0.0-ADR or later software. The 739E[1-16] circuit packs are compatible
with Release 7.2.0 and later software.
â–  RCVR 1E: One slot is provided for the 839B2, 839B4B, 839B5, or 839E5
OC48 Receiver, Add/Drop (OC48 RCVR [A/D]) circuit pack for OC-48
high-speed line 1E. The 839B4B and 839B5 OC48 RCVR (A/D) circuit
packs are compatible with Release 7.0.0-ADR or later software. The 839E
RCVR (A/D) circuit pack is compatible with Release 7.2.0 and later
software.

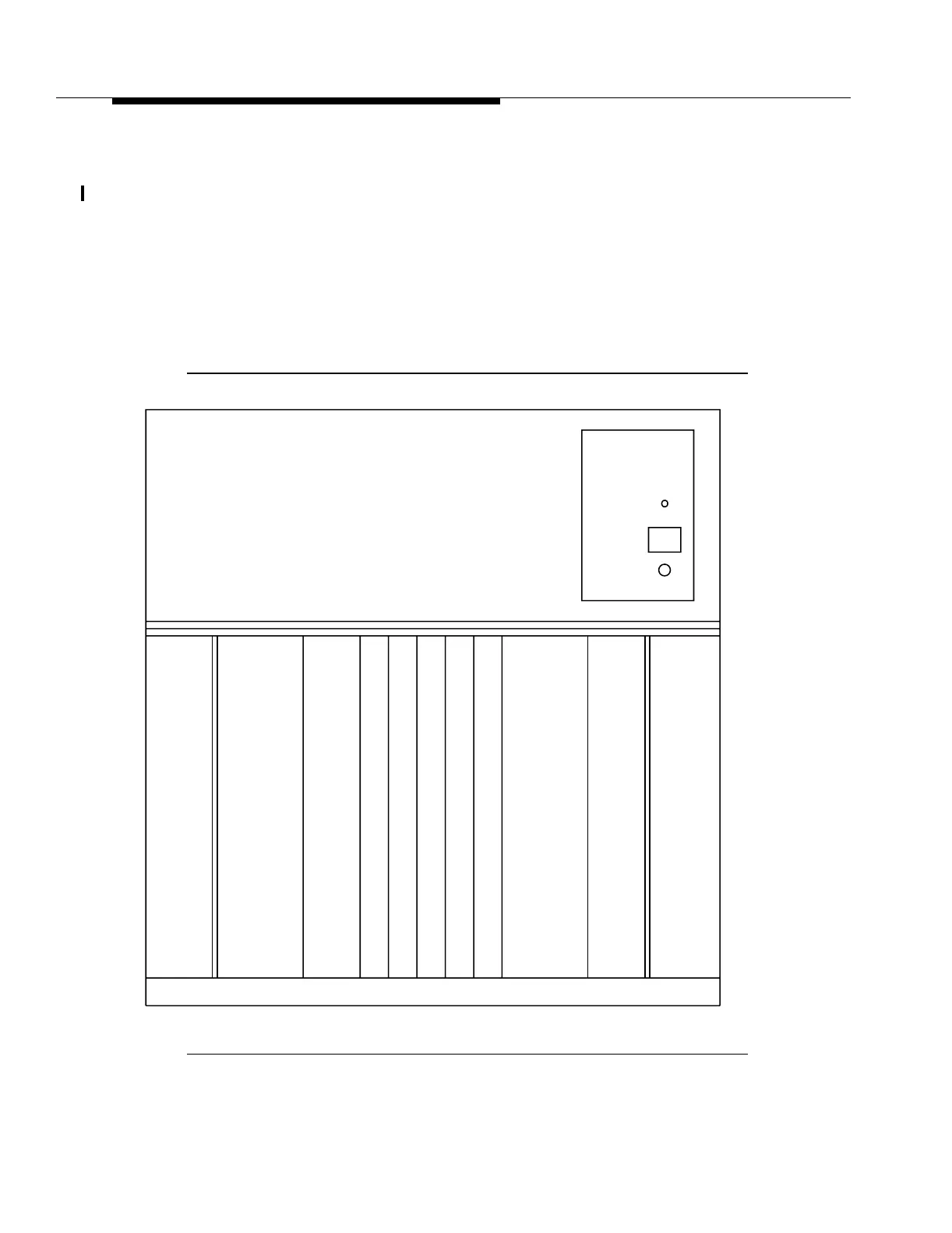

Figure 3-10. High-Speed Shelf (Without Circuit Pack Cover)
RCVR
L
N
C
T
L
O
H
C
T
L
R
E
S
E
R
V
E
D
TRMTR
RCVR
LNCTL OHCTLTRMTR RCVR TRMTR RCVR
1W
OHCTL
TRMTR
Filter
Panel
O
H
C
T
L
1W 1W 1W 1E 1E 1E
Interconnection Panel Cover
