365-575-102 Detailed Level Procedure: DLP-550
Issue 8.0, July 2002 Page 3 of 16
First Step: Determine the Bay Type
Determine which type of bay has the fuse/power failure alarm. An equipment
package code, such as J68974E, appears on the Fuse Panel at the top of the
bay. The last letter of this code indicates the bay type.
If it is an A-Bay, E-Bay,orR-Bay then go to “Option 1: Replace the
Capacitors of a Power Filter Assembly” on page 4.
If it is a D-Bay then go to “Option 3: Replace a Power Line Filter Mod-
ule” on page 12.

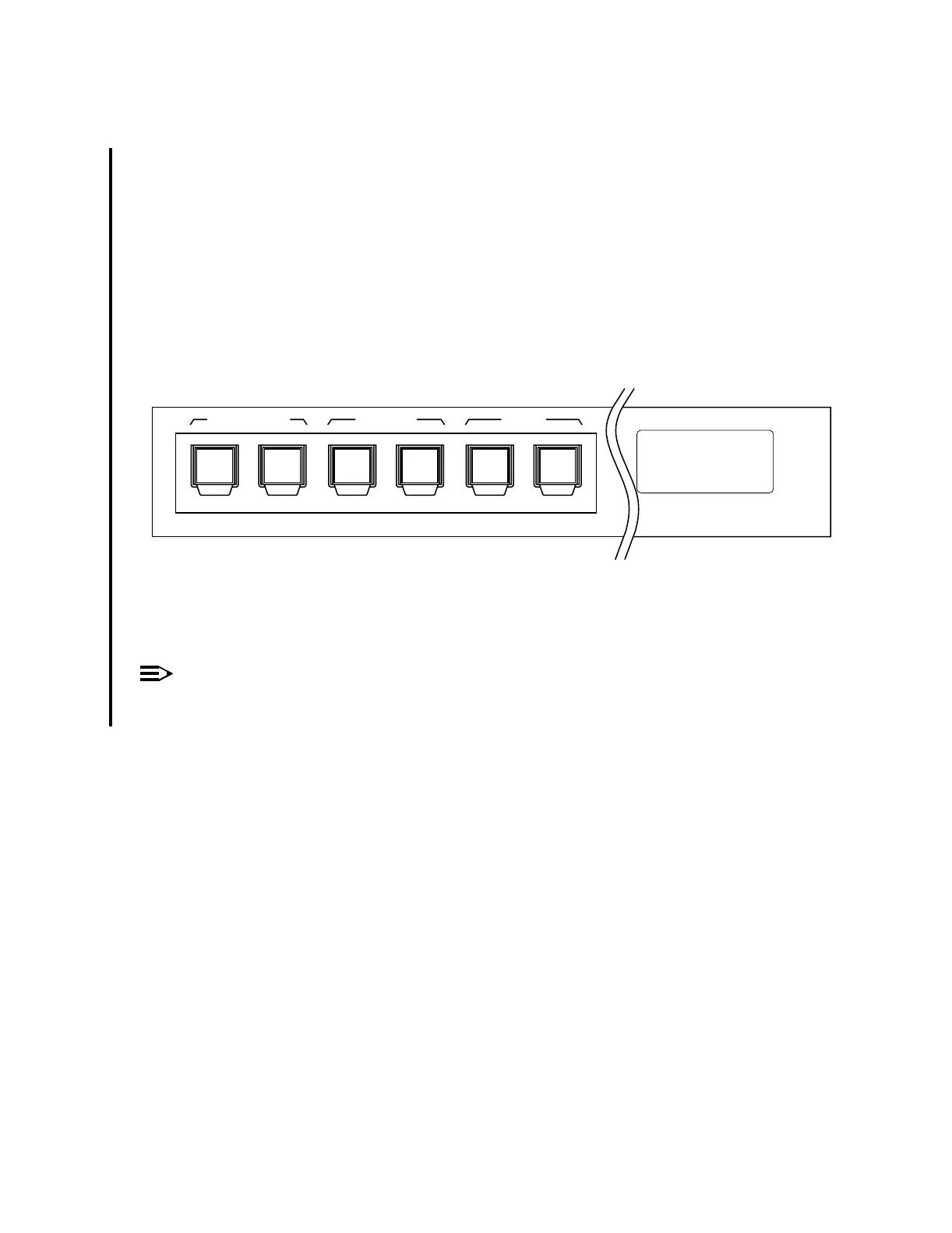

Figure 3 – Example of Fuse Panel with Bay Type Label
NOTE:
The Fuse Panels of other bay types look very similar, except for the wording on
the bay type label.
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
BOTTOM SHELF/FAN
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
FUSE
LIFT UP
10A,60V
-48A
FUSE
LIFT UP
10A,60V
MIDDLE SHELF TOP SHELF
FT-2000
-48B -48B -48B
OC-48 Repeater Bay
OC-48 Lightwave Repeater Bay
J68974R SD5G252-01
To Next Page
