Lucent Technologies FT-2000 OC-48 User Manual

Maintenance Description
Issue 8.0 July 2002
9-41
between the states show transition paths. The labels associated with the arrows
are the stimulus that produce the transitions.

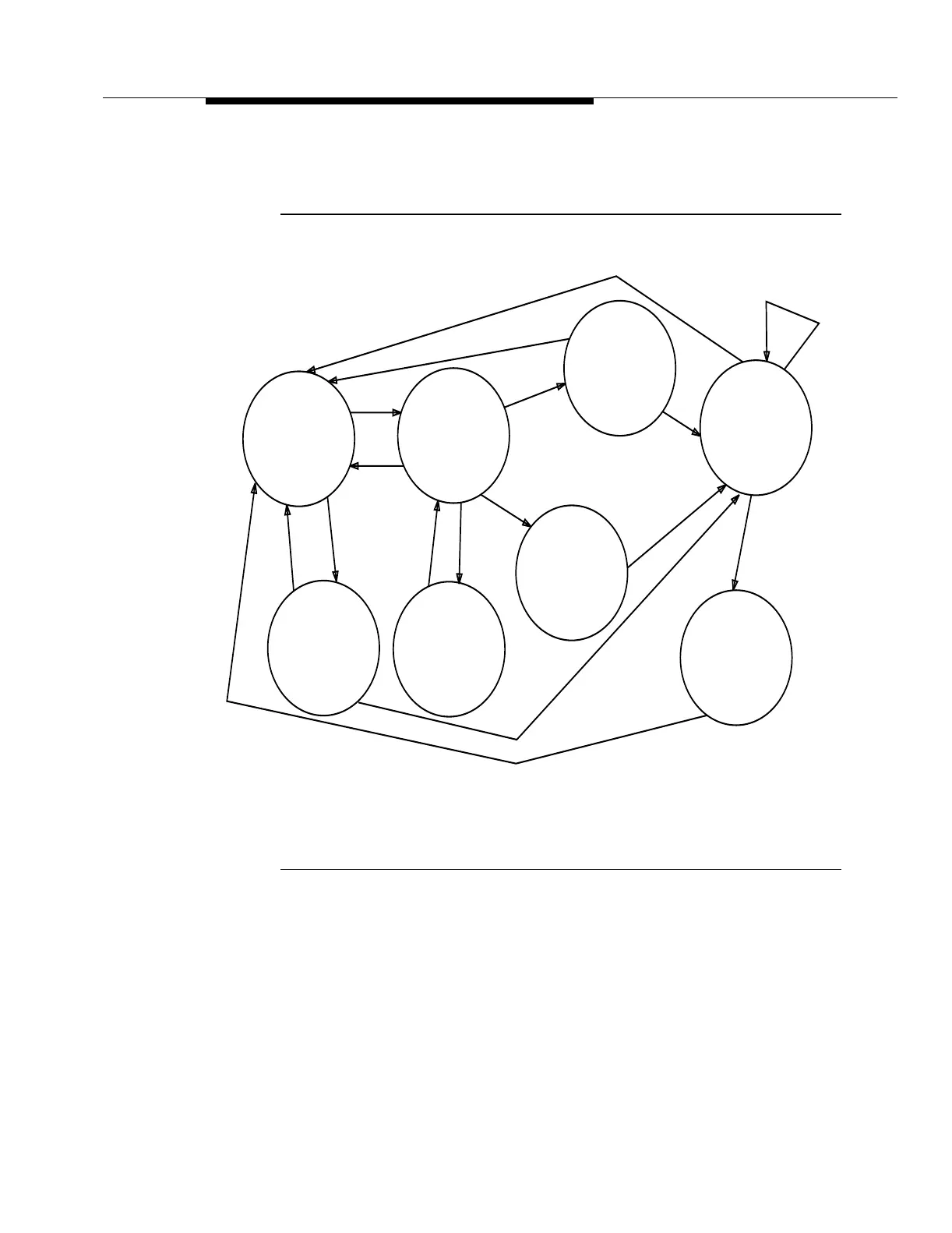

Figure 9-9. Single and Double Failure States
The FT-2000 OC-48 Add/Drop-Rings Terminal may enter the following states
when reacting to single and double failures (Figure 9-9):
■ Normal Operation State: In this state there are no failures that affect
2-fiber ring protection switching. The FT-2000 OC-48 Add/Drop-Rings
Terminal remains in this state the overwhelming majority of time. The
following types of failures cause transitions:
— Span failures are cable cuts and transmission electronics failures
(for example, transmitter or receiver circuit pack failures)
Normal Operation
State
(No Failures)
Power
Restored
Potential Loss Of
Service State #1
Potential Loss Of
Service State #2
Potential Loss Of
Service State #3
Potential Loss Of
Service State #4
Span
Failure
Span Clearance
Span Clearance
Span
Clearance
Either Complete
Bay or HS Shelf
Power Loss
Either
Span
Clearance
Protected State
Protected State
Hardware
RCVR, or
Facing)
Partial Repair
State
Release 5 Software
Installed and Some
Manual Intervention
Power Restored
Span Clearance and Some
Manual Intervention
Release 4.1 or Earlier
Software Installed
Either Complete Bay or HS
Shelf Power Loss
Span Clearance
Second
Span Loss
Reset of OHCTL
Due To All Causes
tpa 847883/01
Reset of TRMTR,
(Vulnerable to Outage)
LS INTFC (East
