Craft Interface Terminal Usage
11-176 Issue 8.0 July 2002
66. From the report, select an unused slot (3a through 5b) and an unused
tributary that is identified by a line number (1E or 1W) and a tributary
number (3 through 5). An unused slot and tributary is indicated with a dash
(-) in the Destination/Source columns.

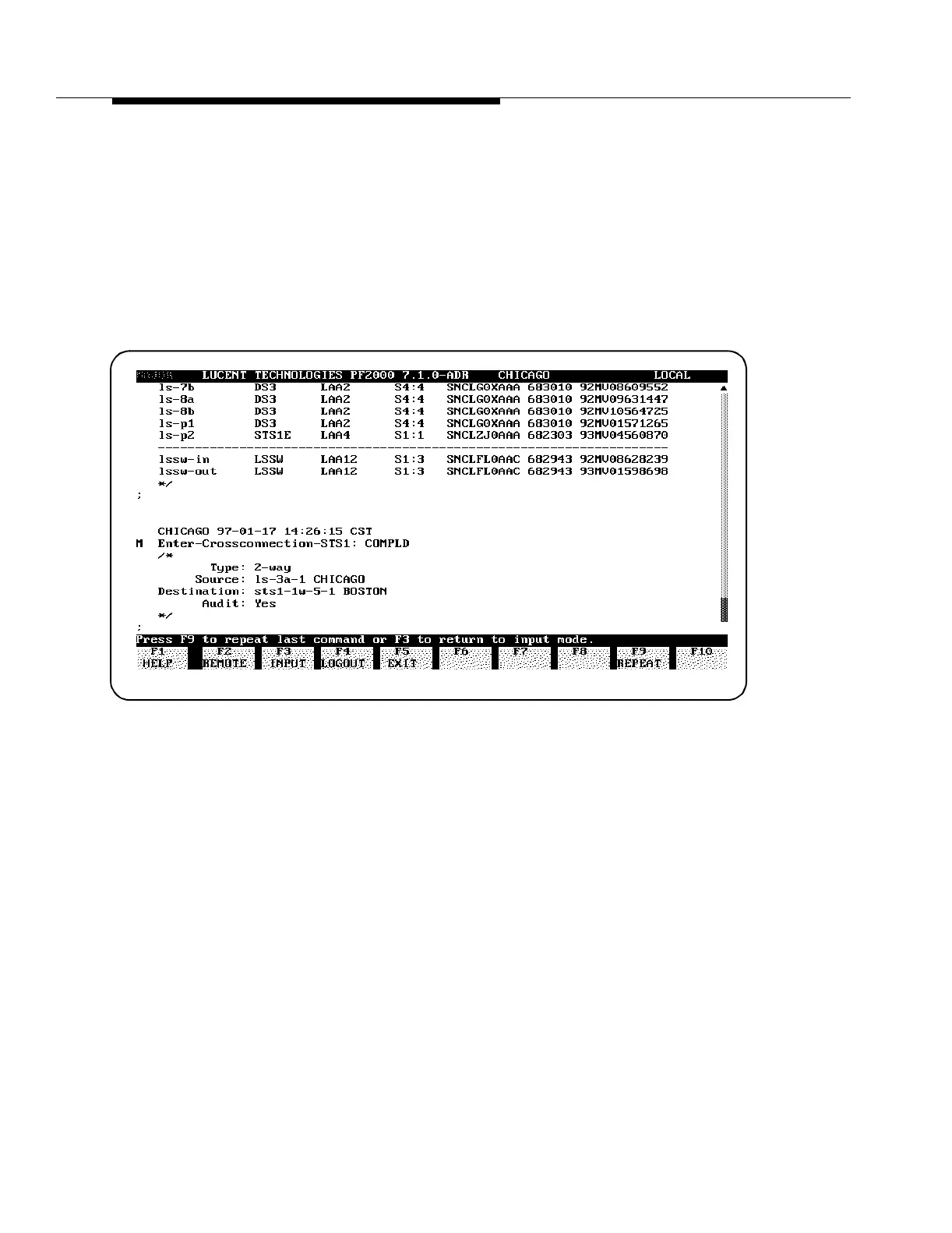

67. Select the CONFIGURATION-Enter-Crossconnection-STS1
command to add (slot to tributary) cross-connection. For example,
CONFIGURATION- Enter-Crossconnection-STS1:2-way,3a,1w-5
is a 2-way add/drop from slot 5b to tributary 5 in the West direction.
