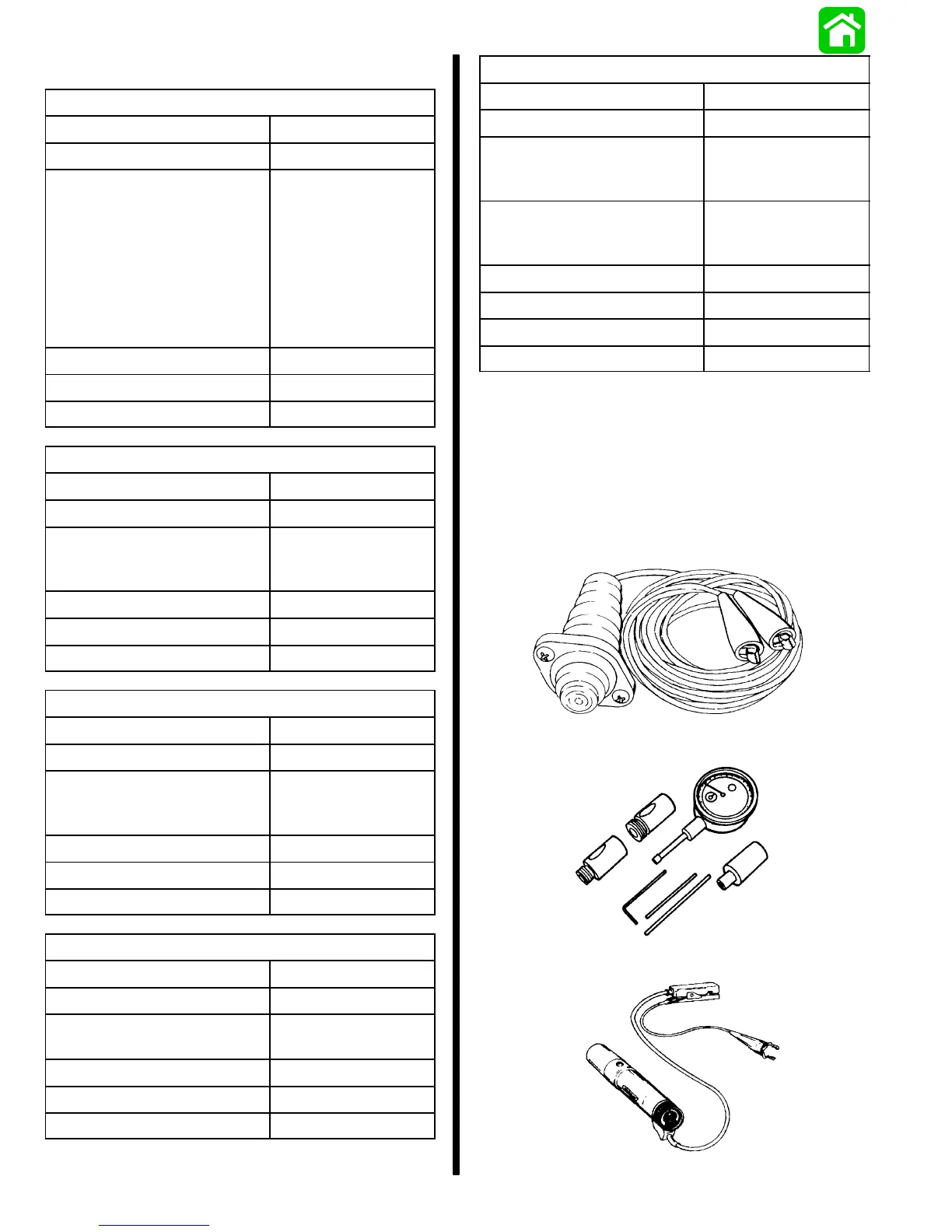

2C-2 - ELECTRICAL 90-824052R3 JUNE 2002
ELECTRONIC FUEL INJECTION MODELS
Models 150 XRI
Full Throttle RPM Range 5000-5600
Idle RPM (in Forward Gear) 625-725
1992 – 1997 Model
Maximum Timing:
@ Cranking Speed
@ 5000 RPM
1998 Model
Maximum Timing:
@ Cranking Speed
@ 5000 RPM
20° BTDC
19° BTDC
15° BTDC
16° BTDC
Idle Speed/Pickup Timing 0°-9° ATDC
Spark Plug NGK-BU8H
Firing Order 1-2-3-4-5-6
Model 175 XRI
Full Throttle RPM Range 5000-5600
Idle RPM (in Forward Gear) 625-725
Maximum Timing:
@ Cranking Speed
@ 5000 RPM
20° BTDC
19° BTDC
Idle Speed/Pickup Timing 0°-9° ATDC
Spark Plug NGK-BU8H
Firing Order 1-2-3-4-5-6
Model 200 XRI
Full Throttle RPM Range 5000-5800
Idle RPM (in Forward Gear) 625-725
Maximum Timing:
@ Cranking Speed
@ 5800 RPM
16° BTDC
22° BTDC
Idle Speed/Pickup Timing 0°-9° ATDC
Spark Plug NGK-BU8H
Firing Order 1-2-3-4-5-6
Model 150 PRO MAX/SUPER MAGNUM
Full Throttle RPM Range 6200-6500
Idle RPM (in Forward Gear) 600-700
Maximum Timing:
@ Cranking Speed
20° BTDC
Idle Speed/Pickup Timing 0°-9° ATDC
Spark Plug NGK-BU8H
Firing Order 1-2-3-4-5-6
Model 200/225 PRO MAX/SUPER MAGNUM
Full Throttle RPM Range 6200-6500
Idle RPM (in Forward Gear) 600-700
Maximum Timing:
@ Cranking Speed
(200 only)
(Note)
25° BTDC
Maximum Timing:
@ 3000 RPM
(225 only)
26° BTDC
Idle Speed/Pickup Timing 0°-9° ATDC
Spark Plug (200 only) NGK-BU8H
Spark Plug (225 only) NGK-BUZHW
Firing Order 1-2-3-4-5-6
NOTE: Early model 200 engines equipped with the
detonation module should set the timing at 20
°
BTDC.
Special Tools
Remote Starter Switch 91-52024A1
Dial Indicator 91-58222A1
Timing Light 91-99379
