90-824052R3 JUNE 2002 FUEL SYSTEMS - 3B-39

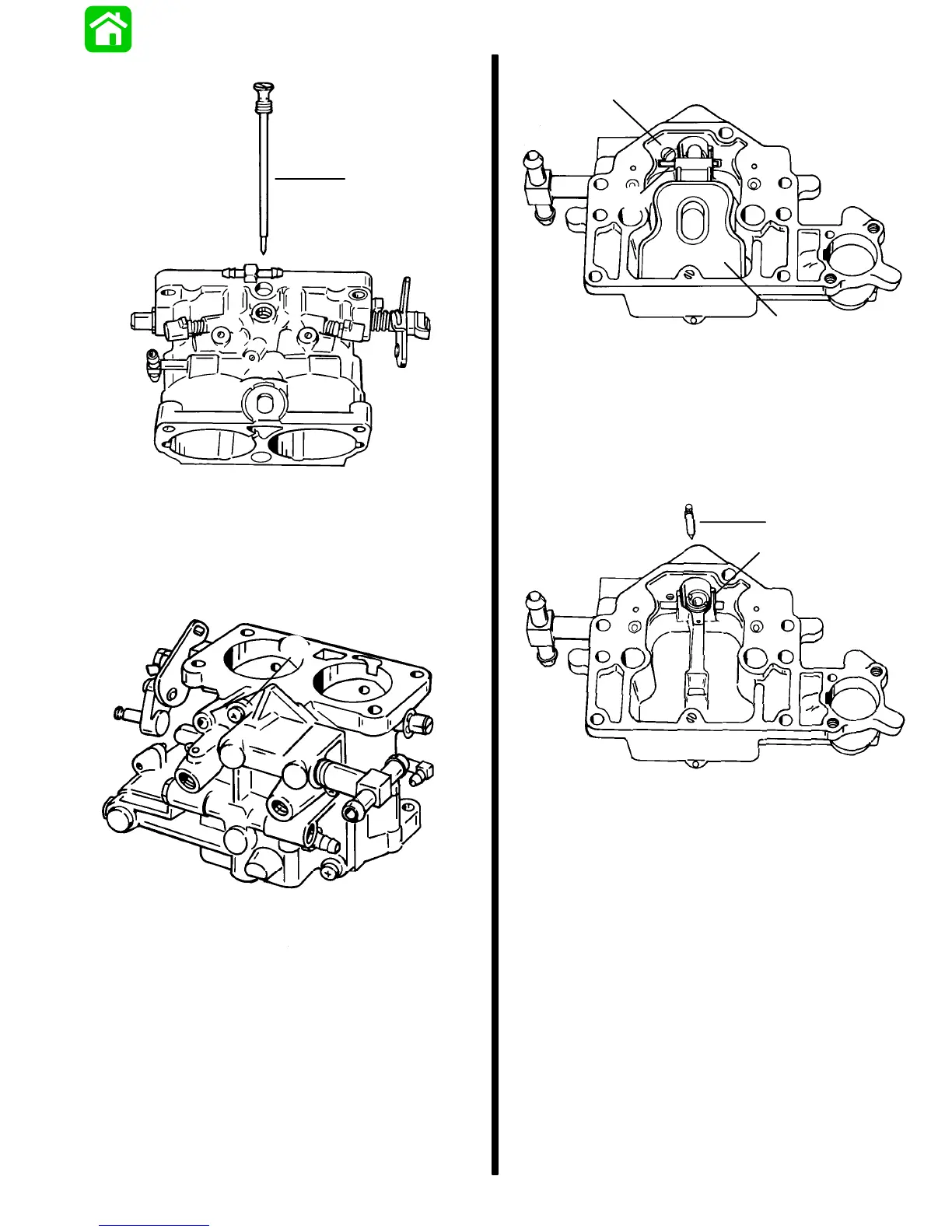

5. Remove emulsion tube from carburetor.
a
51862
a - Emulsion Tube
Fuel Bowl Removal and Disassembly
1. Remove five screws securing fuel bowl and
gasket to carburetor body.
51862
a
a - Screws
2. Remove screw securing float assembly in place.
a
c
b
51863
a - Screw
b - Float Pin
c - Float
3. Remove needle and seat from fuel bowl.
51859
a
b
a - Needle
b - Seat with Gasket
