2D-18 - ELECTRICAL 90-824052R3 JUNE 2002

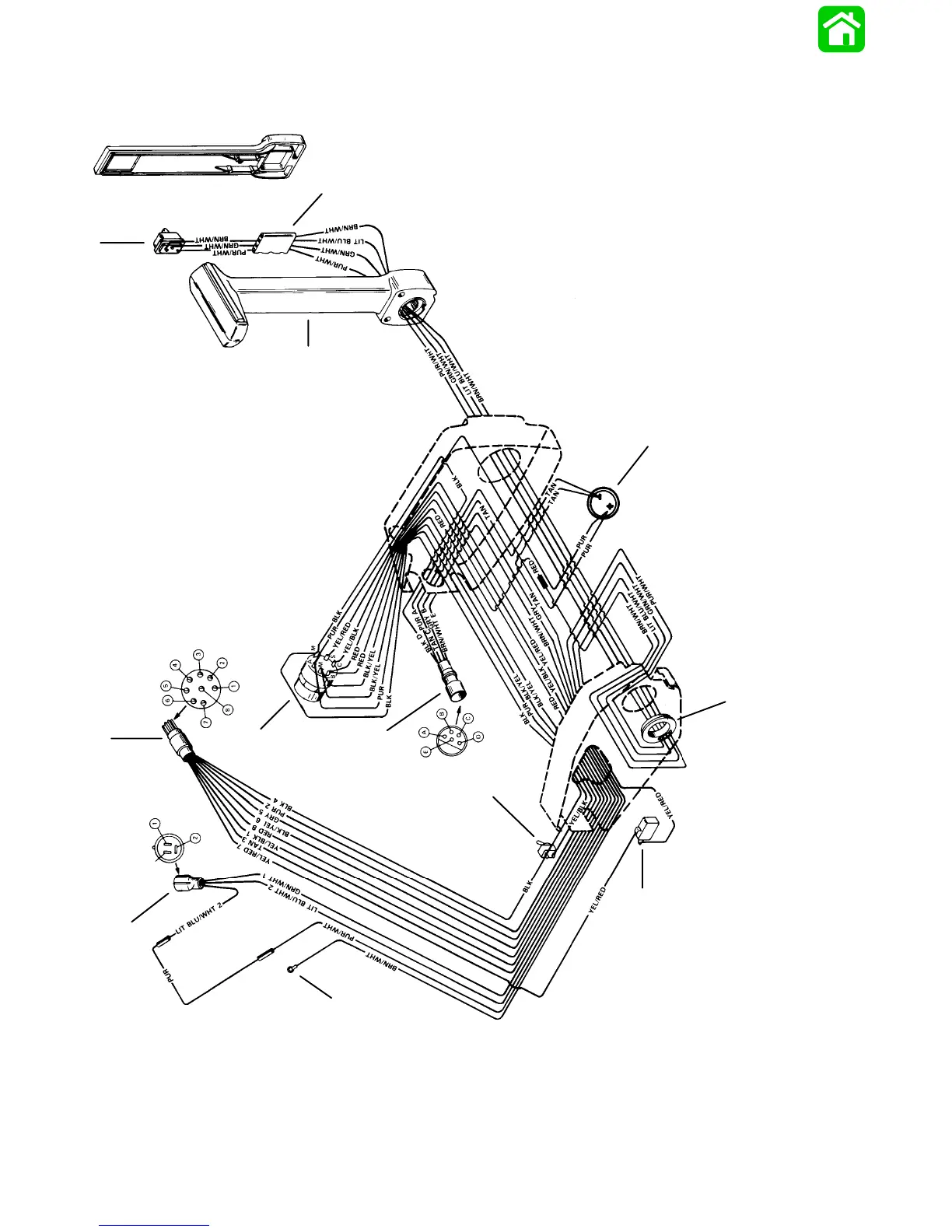

Commander Side Mount Remote Control (Power Trim/Tilt

Electric Start with Warning Horn) Wiring Diagram

BLK = Black

BLU = Blue

BRN = Brown

GRY = Gray

GRN = Green

ORN = Orange

PNK = Pink

PUR = Purple

RED = Red

Tan = Tan

WHT = White

YEL = Yellow

LIT = Light

DRK = Dark

24072

a - Ignition/Choke Switch

b - Emergency Stop

c - Neutral Start Switch

d - Tachometer/Accessories Harness Connector

e - Wiring Harness Connector

f - Warning Horn

g - Trim/Tilt Switch

h - Wire Retainer

i - Control Handle

J - Trim Harness Bushing

k - Trim Harness Connector

l - Lead to Trim Indicator Gauge
