2D-26 - ELECTRICAL 90-824052R3 JUNE 2002

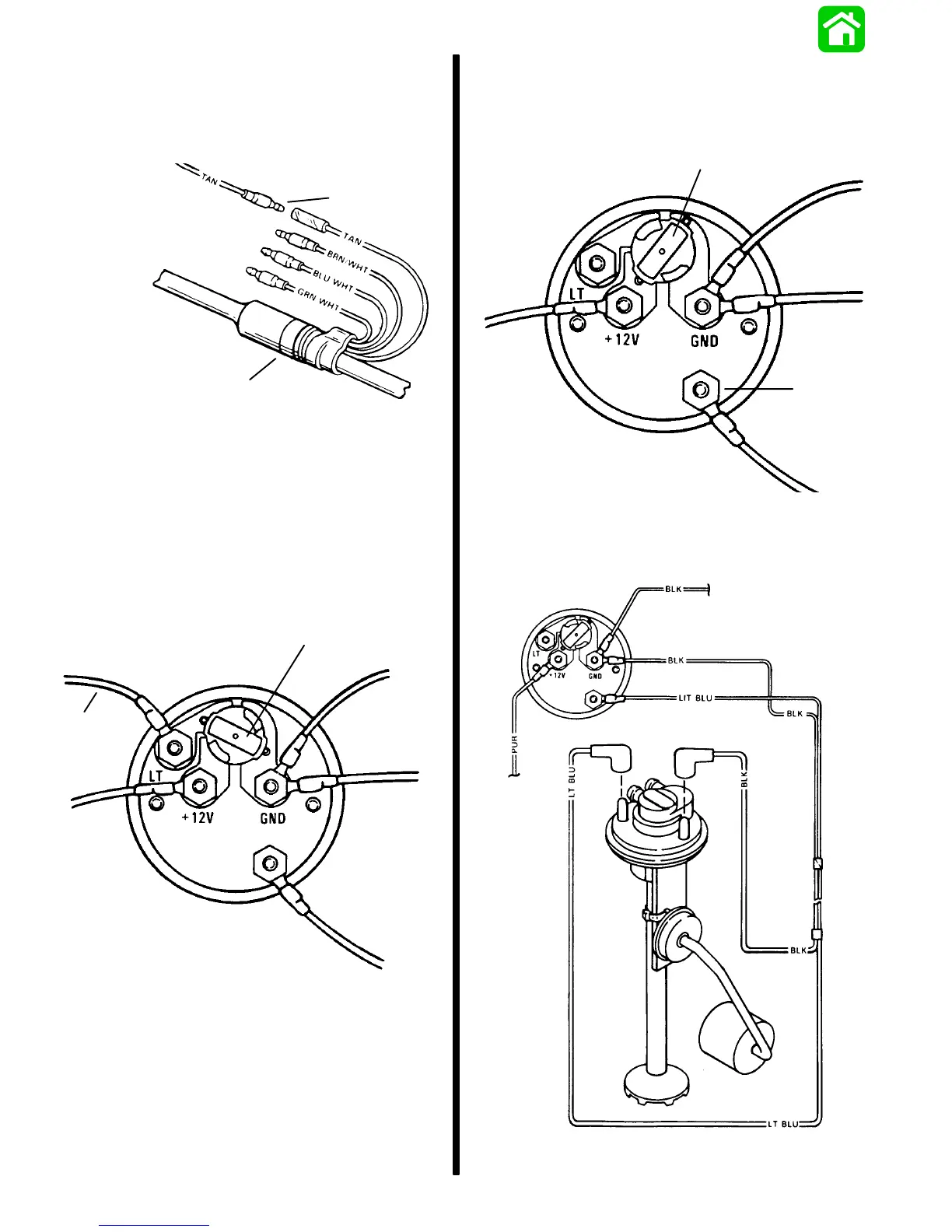

Route TAN lead on starboard side of engine to
engine/remote control harness. Connect as shown.
IMPORTANT: Tape back and isolate any unused
wiring harness leads.
28086
a
b
a - Lead from Temperature Sender
b - Engine/Remote Control Harness
Oil Level Gauge Wiring
LIGHT BULB POSITION A
Use this position when using a separate light switch
for instrument lighting.
a
b
51109
a - +12 Volt Light Switch Wire
b - Position Light Bulb to the Switched Position
LIGHT BULB POSITION B
Use this position when instrument lighting is wired
directly to the ignition key switch. (Instrument lights
are on when ignition key switch is turned on.)
a
51112
b
a - Position Light Bulb to the Unswitched Position
b - Sender
SENDER WIRING
51108
a
b
a - Connect to +12 Volt
b - Connect to NEGATIVE (–) Ground
To Next Page
