TEST 7
a. Connect voltmeter between common engine and Test Point 1.
b. Turn ignition key to “Start” position.
No voltage reading:
Defective starter solenoid
12 Volt Reading*
Should hear solenoid click: proceed to TEST 8
TEST 8
a. Reconnect BLACK cable (with YELLOW sleeve) to starter solenoid Test
Point 1.
b. Connect voltmeter between common engine ground and Test Point 7.
c. Turn ignition key to “Start” position.
No voltage reading:
Check BLACK cable (with YELLOW
sleeve) for poor connection or open circuit.
12 Volt Reading*
If starter motor does not turn, check starter motor.
*Battery Voltage
ELECTRICAL - 2B-13
90-824052R3 JUNE 2002

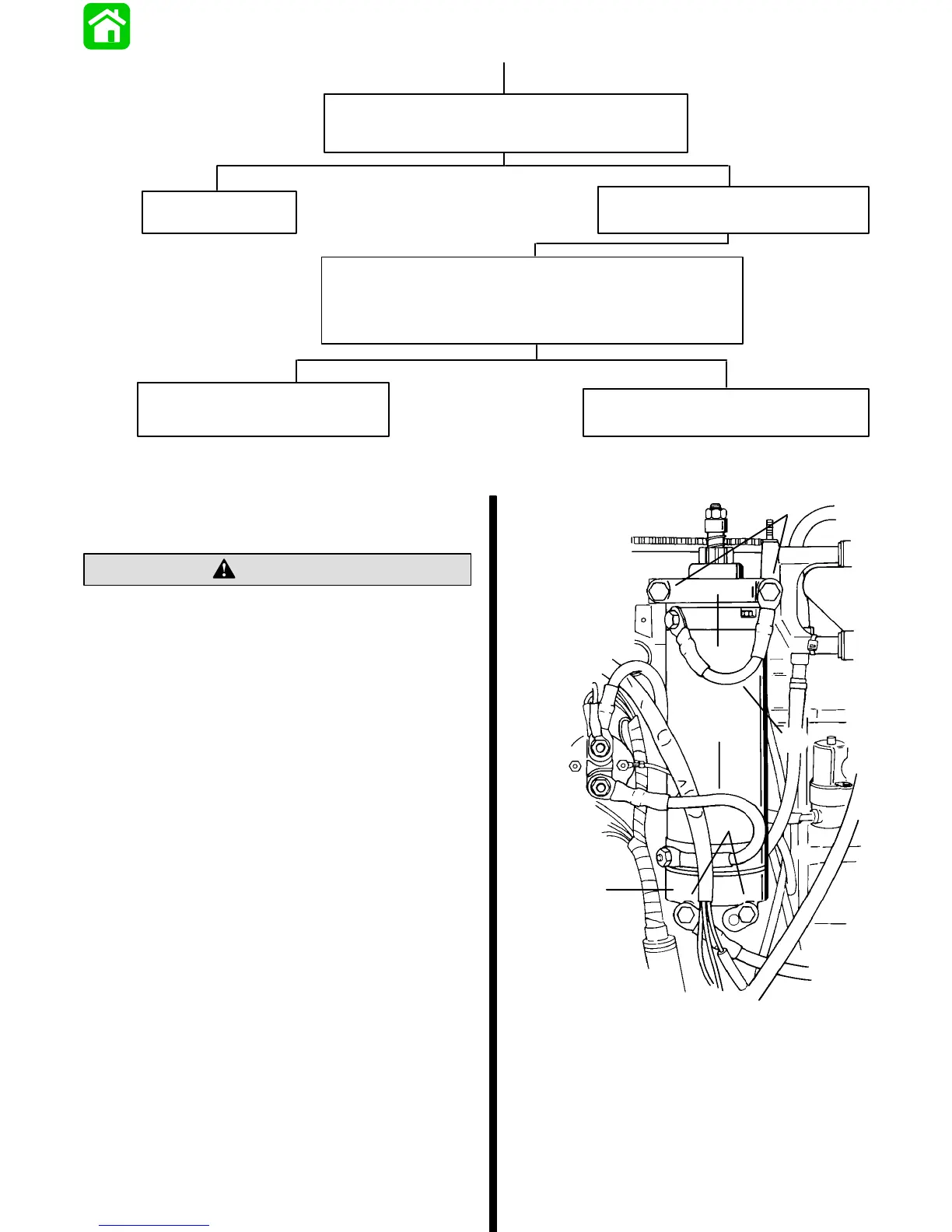

Starter Removal and Installation
REMOVAL
CAUTION
Disconnect battery leads from battery before
removing starter.
1. Disconnect BLACK ground cable from starter.
2. Disconnect BLACK (with YELLOW sleeve) cable
from starter.
3. Remove 4 bolts and upper and lower starter
clamps. Lift starter from engine.
c
e
b
f
d
a
51840
a - BLACK Ground Cable
b - BLACK (with YELLOW sleeve) POSITIVE (+) 12-
Volt Cable
c - Upper Mounting Bolts
d - Lower Mounting Bolt
e - Upper Clamp
f - Lower clamp
